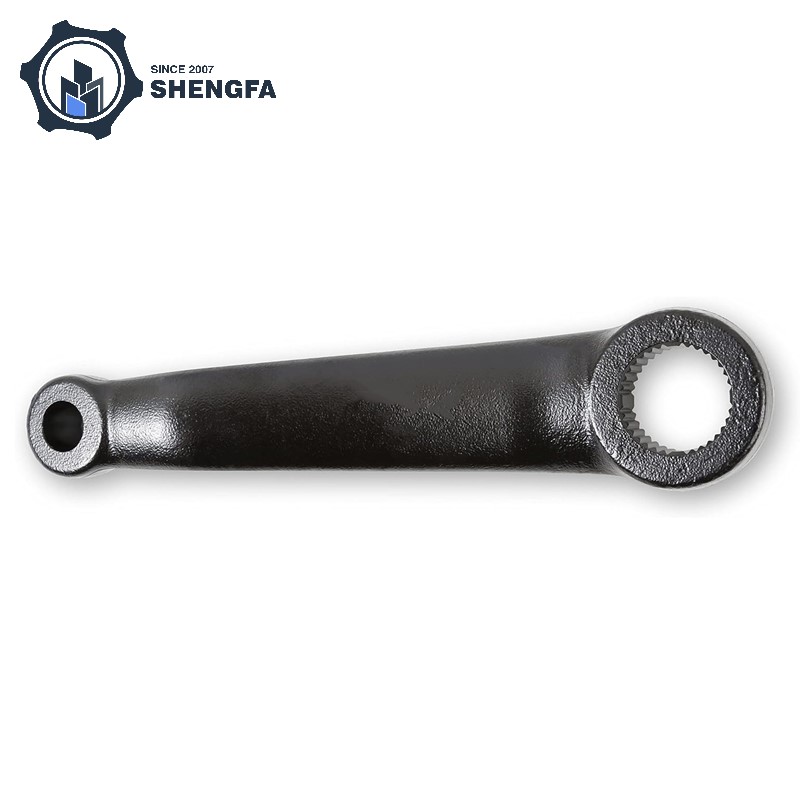

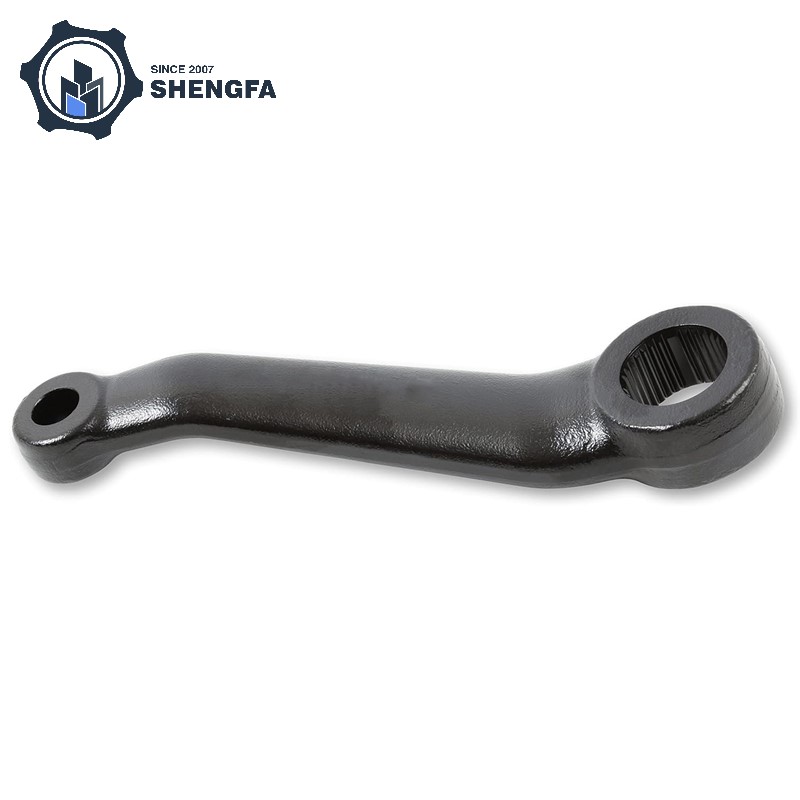

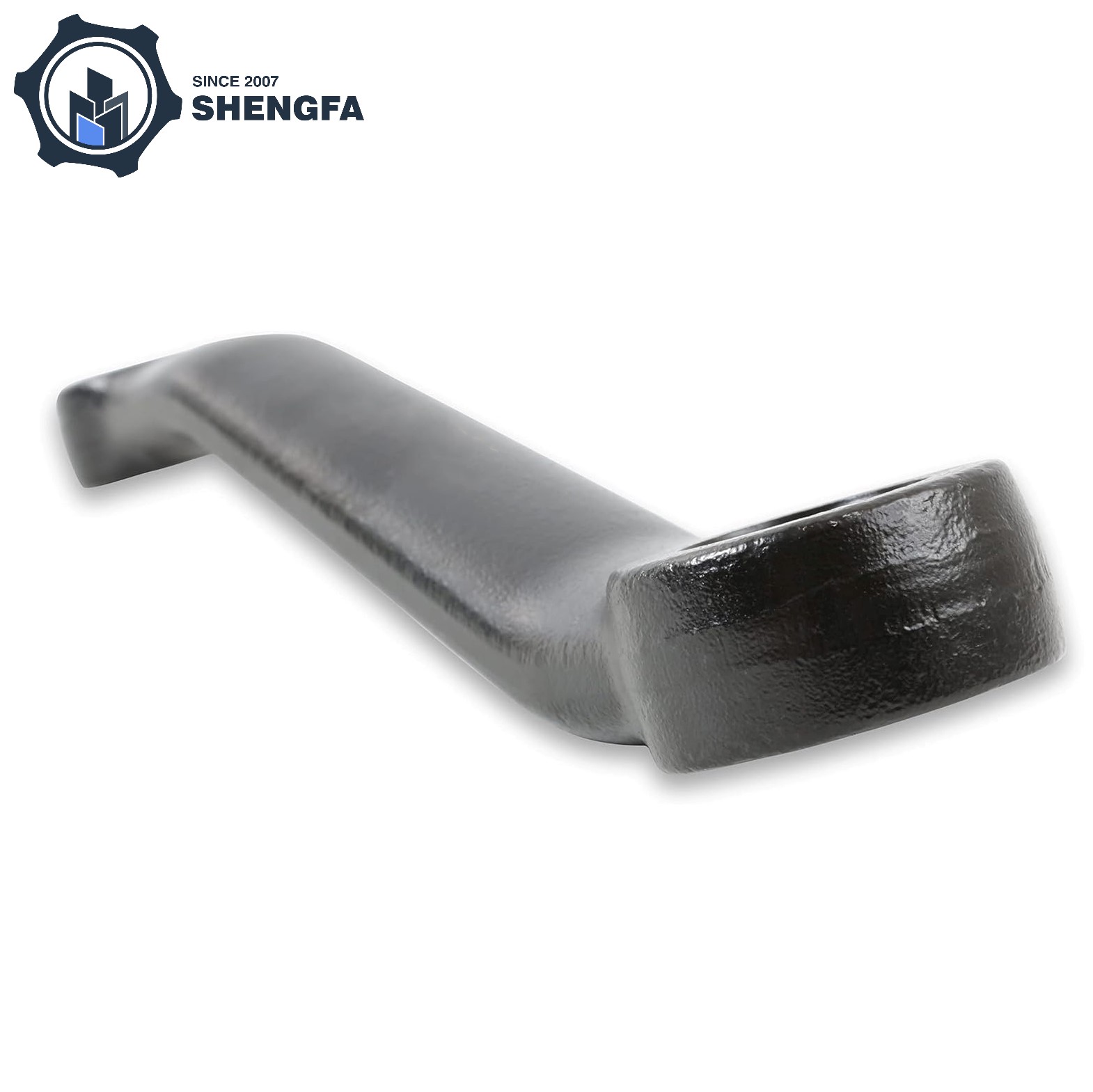

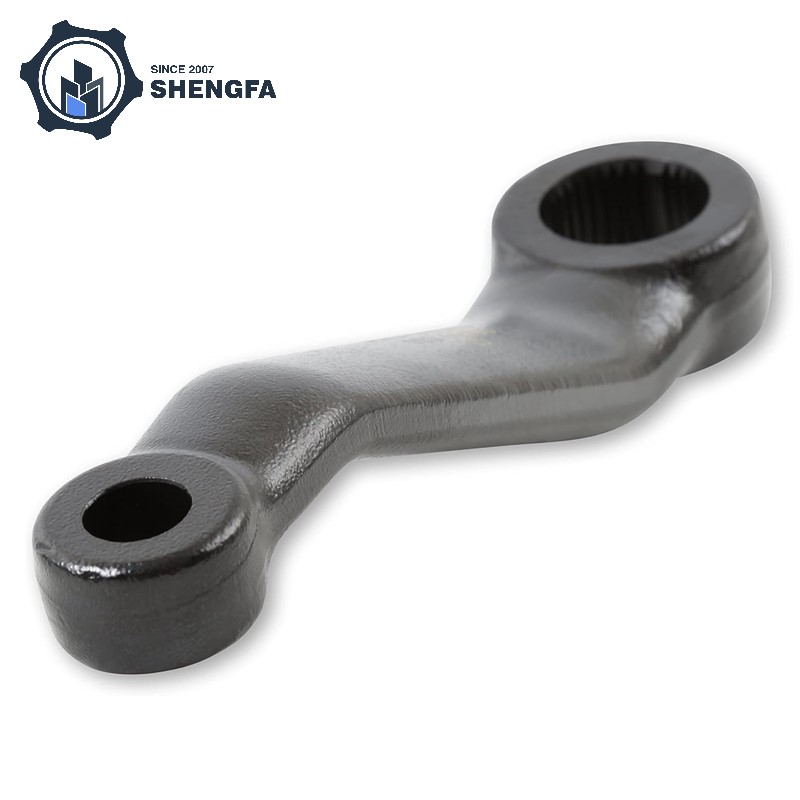

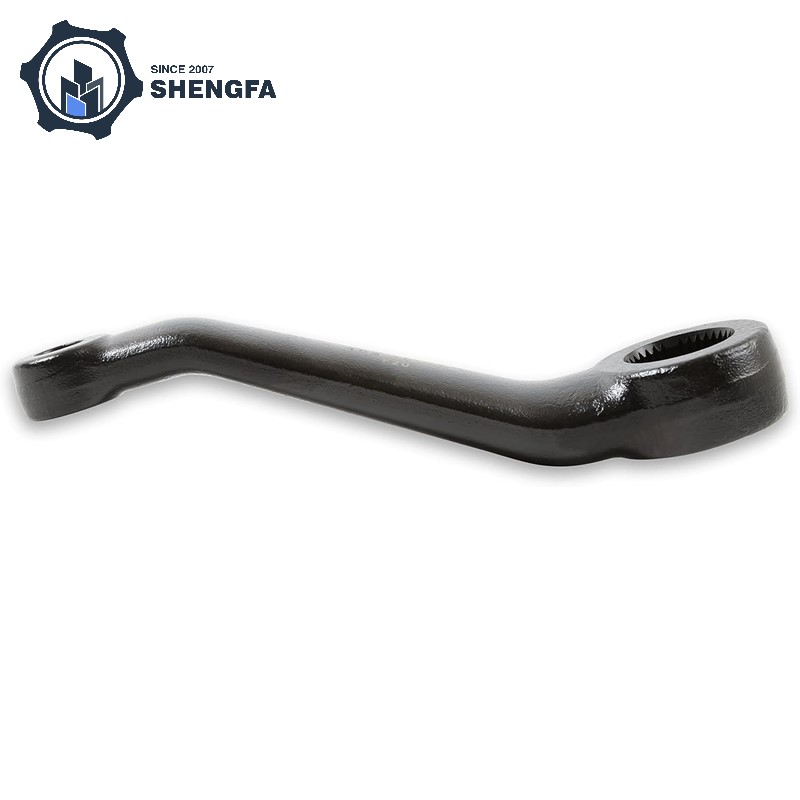

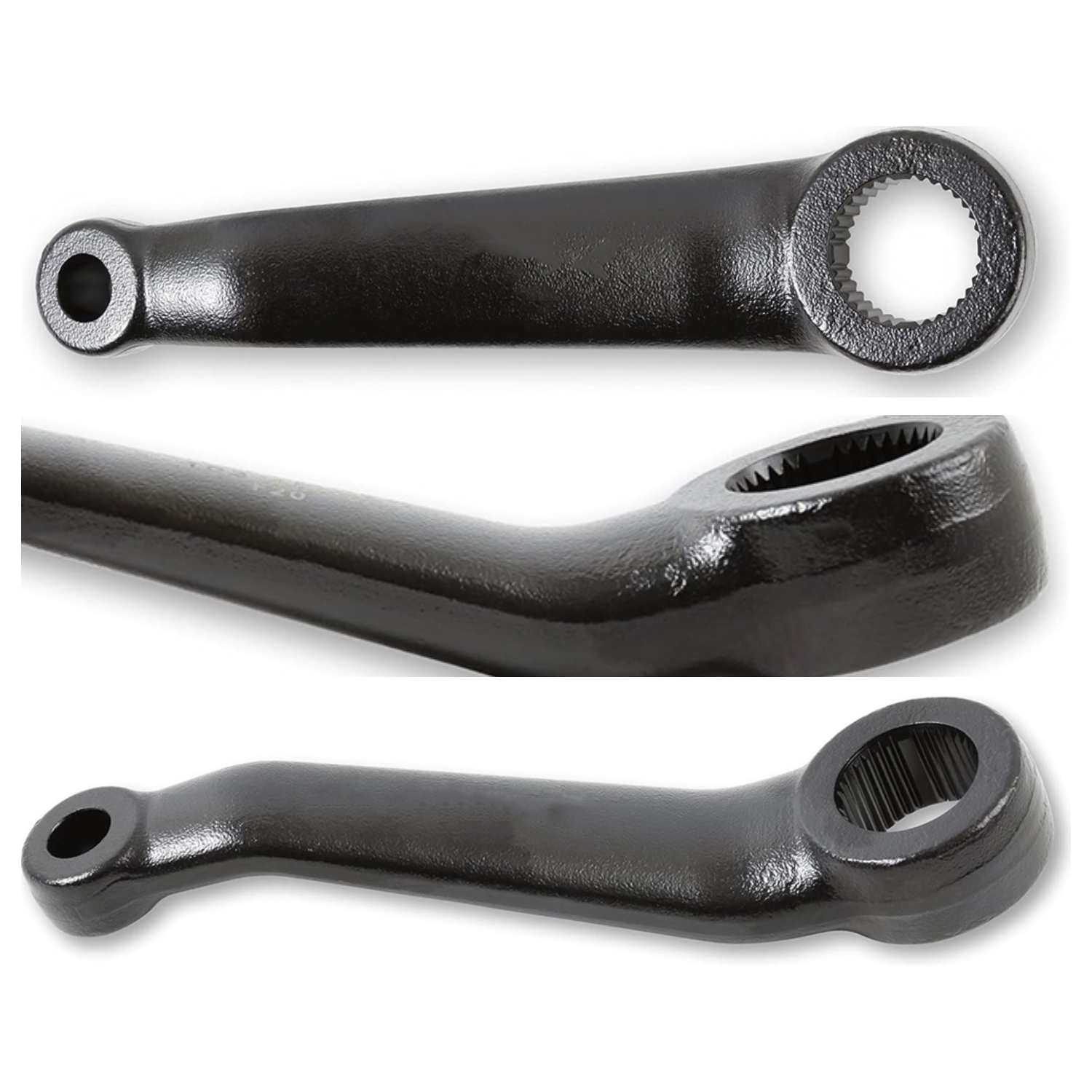

Forged Pitman Arm

Although it is a small part of the steering system, the pitman arm plays a vital role in the correct handling of the car. Ningbo Shengfa Hardware's expertise in forging durable, high-strength automotive parts, our forged tong arm is no exception. Our factory in Ningbo, China, has been producing parts for global OEM and aftermarket customers for nearly 20 years.

We believe that it is important to provide more than just useful alternatives. Each forged pitman arm we manufacture is designed to improve steering life and overcome the problems of many original parts. Whether it's off-road conditions, commercial use, or high-mileage applications, we work with customers around the world to ensure their vehicles have arms and legs designed for real-world needs.

Why Forged Matters: The Advantage in Steering Dynamics

The hub connection between the steering linkage and the steering gear is the pitman arm. It converts the rotation of the steering box into the lateral motion required for wheel rotation. Here, failure is not only inconvenient, but also dangerous. Therefore, the materials and production technology used are crucial.

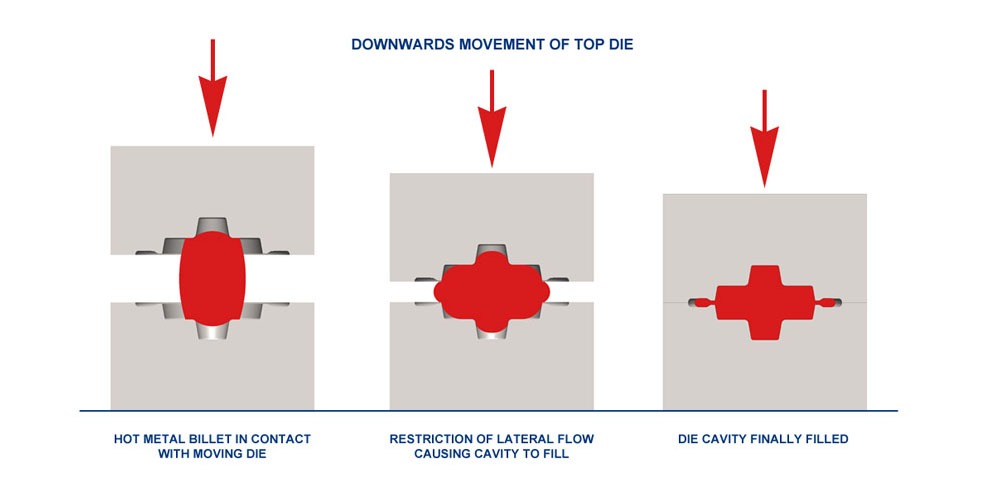

For parts like the pitman arm, forging provides unparalleled mechanical strength. Forging refines the grain structure by colliding or squeezing the metal under the action of high temperature and force, so that the material fibers are arranged neatly, and products with excellent fatigue resistance and impact strength are manufactured. In short, forging strengthens the most important part under repeated dynamic loads.

At Ningbo Shengfa Hardware Factory, we use alloy steel grade 45 steel and 42CrMo hot forging steel to make clamp arm. These materials are known for reaching a compromise between machinability and toughness. Each part is heat treated after forging to maximize hardness and ductility, and then key features such as taper holes and splines are accurately numerically controlled.

Real-World Engineering: Going Beyond OE Limitations

Our forged pitman arm is upgraded on OEM models, which is one of the reasons why customers choose us. The initial design tends to prioritize cost-effectiveness rather than long-term robustness. Our engineering team uses failure analysis and reverse engineering to identify typical problems such as dimensional imbalances, corrosion-prone surfaces, and premature wear.

Where needed, we redesign. In some applications, this requires changing the geometry to improve clearances and hinges, or thickening the material at high stress locations. We can improve the design of commercial trucks to support larger loads. We can also create pitman arms with improved travel angles and added strength to withstand the rough use of lifting kits or for 4x4 or off-road applications.

Modern software tools such as CAD simulation, finite element analysis (FEA) and 3D scanning support this. This ensures that the final product is purposeful in addition to being more powerful.

Coating, Corrosion Resistance, and Testing

The pitman arms are often affected by water, mud, salt and debris as they are located in exposed positions under the chassis. Erosion is not only aesthetically pleasing, but also compromises safety and mechanical fit. That's why we use corrosion-resistant coatings as a normal procedure.

According to the customer's needs, we offer the choice of custom coatings, black oxide, e-coating (electrophoretic coating) and zinc plating. These coatings increase the service life of the arm even in harsh weather conditions or off-road use.

In order to ensure that the coating meets or exceeds the requirements of ASTM B117, we conducted a salt spray test. In order to confirm the mechanical integrity of each product, our internal QC team also carried out load-bearing tests, spline accuracy verification, dimensional inspection and surface hardness tests.

We can also use double-layer protection, combining plating with polymer topcoats for areas with high road salt or critical applications.

Precision Fit and Application-Specific Manufacturing

We realize that long-term durability and ease of installation are equally critical. To this end, we designed each forged pitman arm to comply with OEM-level dimensional tolerances, including appropriate bolt modes, spline engagement and cone angles. We ensure accurate alignment and input compatibility for SUVs, pickup trucks, heavy haul vehicles, and custom 4x4 designs.

Thanks to our application-specific approach, we can customize the pitman arm to accommodate different suspension geometries and steering ratios. We provide engineering help to customers by strengthening or changing the steering system to ensure the smooth operation of our forged parts.

Why Choose Ningbo Shengfa Hardware?

With more than 18 years of forging experience, Ningbo Shengfa Hardware has established its own reliable brand in the manufacture of forging steering and suspension parts. From the procurement of raw materials and forgings, to machining, coating and final inspection, everything we manufacture is internal, not outsourced.

Here’s what sets us apart:

* Full production: from forging to finishing, each stage is supervised.

* Engineering Support: We help you maximize fit, weight and strength.

* Strict quality control: Each forged pitman arm is tested and passed.

* Responsive service: Our project manager speaks English to ensure the timeliness and transparency of communication.

* Customization: We offer variable MOQs for small-batch prototyping and mass manufacturing.

Multi-axis CNC, automatic trimming line, 400-1000 tons of press and pitman arm special fixture are all part of our forging equipment. We invest in the flexibility of the tool so that we can quickly switch model types without paying installation fees or long downtime.

Serving the Global Automotive Industry

Markets in North America, Europe, Southeast Asia, and the Middle East are using our components. We have the ability and adaptability to assist your company, whether you are a dealer, after-sales brand, or a first-class supplier.

Ningbo Port, one of China 's most important export centers, is not far from where we are. This translates into streamlined logistics and faster transportation times. We can complete your order on time and within the prescribed range, no matter how many forged pitman arms you need - 300 or 30,000.

Many of our foreign clients have been with us for more than ten years. They insist on us because we consistently provide high-quality work, communicate effectively, and take proactive measures to solve problems.

Let’s Build Stronger Steering Together

If your company relies on solid steering parts, then Ningbo Shengfa Hardware Factory's forged pitman arm is a wise and proven choice. We build trust in each component, from the materials we use to the attention we give to each machining spline.

Our staff is ready to assist you, whether you are looking for upgrades, replacements, or new custom parts. Get in touch with us immediately to find out how our production intensity, quality process and experience support your upcoming project.
