Forged Stub Axles

At Ningbo Shengfa Hardware, we realized that strength and reliability are essential in trailer and automotive systems. Therefore, the forged stub axles we designed can work well under ultimate strain and constant motion. We have a complete factory in Ningbo, China, with more than 18 years of production experience, providing excellent stub axless for after-sales customers and OEMs around the world.

Stub axles are vital load-bearing components. They connect wheels to the vehicle and enable smooth rotation while carrying heavy vertical loads. Our forged stub axles are designed not only for mechanical performance but also for safety, long service life, and precision fitment. We manufacture for commercial vehicles, off-road equipment, agricultural machinery, and trailers of all types. Our designs meet the standards of demanding applications where failure is simply not an option.

Forging Process for Superior Strength

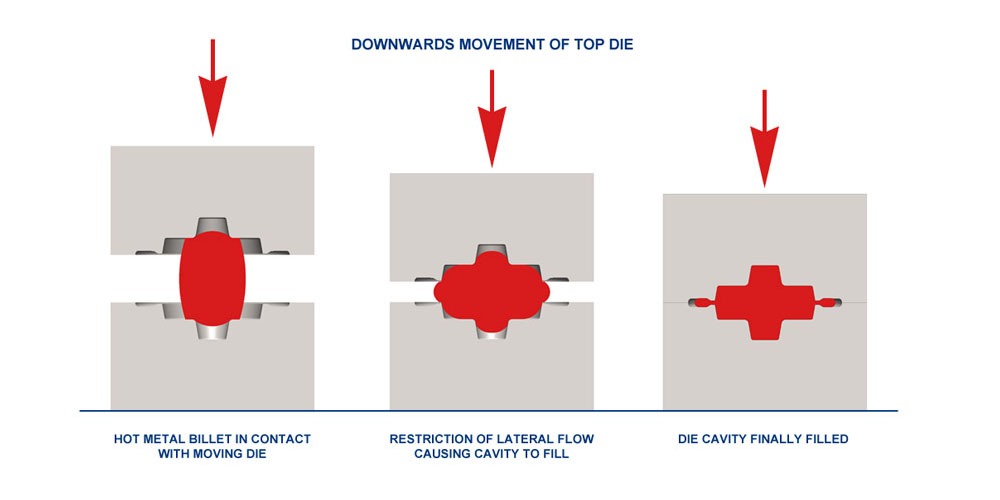

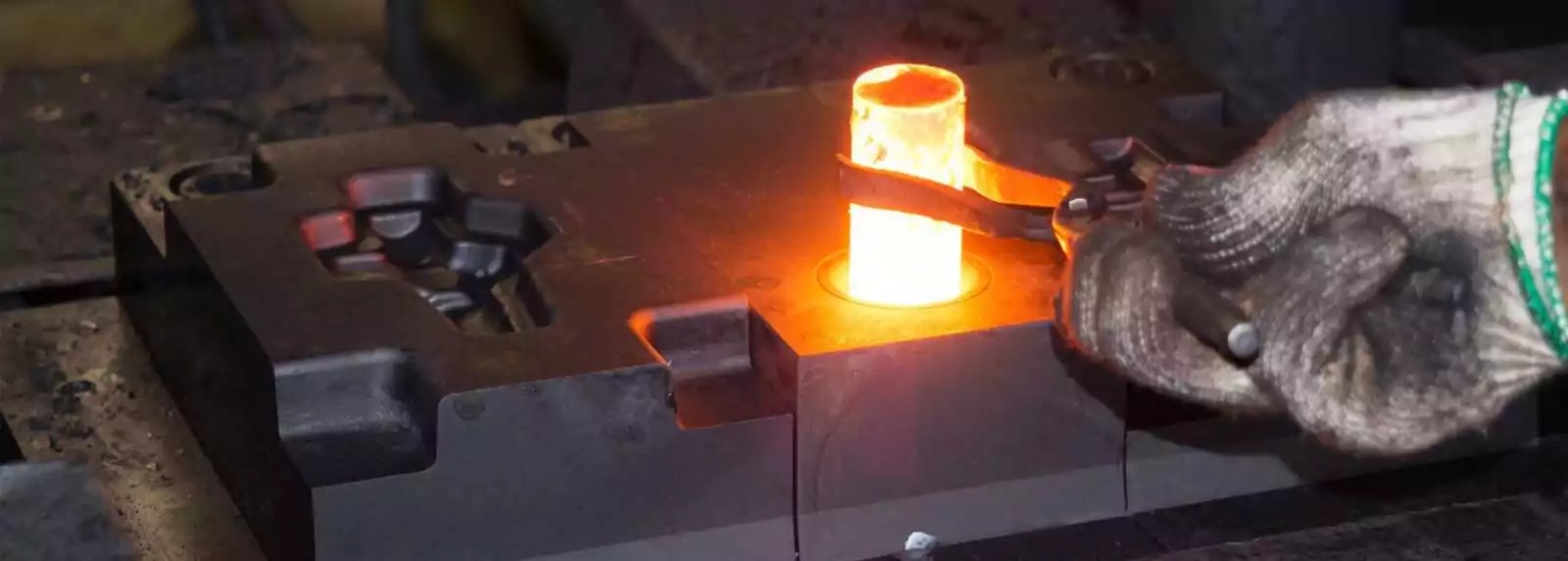

We use a hot forging process to produce our stub axles. Under extreme heat and pressure, forging refines the grain structure of the steel and is consistent with the geometry of the part. This improves overall toughness, fatigue resistance and tensile strength compared to casting or machining from billets. A part that is subjected to numerous stress and load cycles without deformation or fracture is the final result.

Each axle has to go through some key treatment after forging. In order to obtain the ideal ratio of hardness and flexibility, the heat treatment process is adopted. Then CNC machining is used to form the axle to its final size to ensure that the strict tolerances required for automotive applications are met. Galvanizing, electrophoresis and black oxides are examples of surface treatments that further protect against corrosion and environmental wear. This multi-step process ensures that every forged stub axles can withstand the requirements of actual use.

Ningbo Shengfa Hardware’s forged stub axles are designed to withstand harsh conditions, such as soil, gravel, wet roads, highways, etc., without bending or splitting. Our customers rely on their long-term value to reduce downtime and operate safely. OEMs and maintenance experts who do not want to sacrifice quality trust them.

Precision counting when it comes to axle parts. In order to meet the strict size requirements, our design team works with customers and reverse engineers to reverse design the original equipment parts. We have modified our machinery to match specific vehicle platforms, whether performance vehicles or agricultural trailers, which require stub axles. We guarantee reliable performance from prototype to production.

We offer a range of spindle profiles to accommodate popular hub designs and support metric and imperial standards. Before delivery, our internal metrology equipment, such as the coordinate measuring machine (CMM), ensures that each part meets or exceeds the tolerance requirements. The axle length, keyway shape, bearing seat diameter, thread size and flange design are all stub axles that can be customized. As required, we also offer solid or hollow shaft alternatives and dual bearing designs.

From the initial technical drawings to material selection, forging die design, and final verification, our engineers are involved in each step. Thanks to this integrated approach, we can modify specifications immediately to maximize cost-effectiveness and shorten lead times. Whether creating a new system or updating components, we guarantee flawless adaptation and operation.

Materials That Make a Difference

For forged stub axles, alloy steels of grade 1045 or 4140 are usually used. These materials have excellent strength, machinability and reactivity to heat treatment. 1045 carbon steel is cost-effective and can handle medium and high loads. It can effectively withstand moderate stress and is easy to manufacture. The 4140 chromium steel provides higher strength and fatigue resistance for harsh applications such as high-speed or off-road driving.

We now offer stub axles of 5140 and 4340 steel for applications requiring special durability. These materials are known for their excellent hardness retention, tensile strength and wear resistance. Before being put into the production line, all raw materials must be tested and obtained from an approved factory. The composition, diameter and structural correctness of the bar were checked. Each batch includes full traceability documentation to guarantee origin and quality.

We work with customers to determine the best material grade based on load rating, environment, and cost goals. Our metallurgy experts help choose steel that not only meets technical standards but also optimizes long-term durability.

Durability Backed by Testing

Each forged stub axles is completed by Ningbo Shengfa Hardware Factory through a perfect detection procedure. We have done the following work:

* Using a three-coordinate measuring machine and a caliper for dimensional inspection

* Hardness and tensile strength test after heat treatment

* Magnetic particle inspection to find surface or subsurface cracks

* Salt spray corrosion test of completed parts

* Fatigue simulation test under high stress

* Inspection of thread accuracy and surface roughness

For our axis, we adhere to global standards and customer-specific standards. At each shipment, we include inspection reports and material certification. Provide third-party verification upon request. This open and honest quality control system reduces warranty requirements and provides a mood for customers.

Personalization and technical assistance

We realize that each customer 's needs are unique. Therefore, we provide flexible engineering help. We can reverse engineer, 3D models and prototype stubs to your specifications, whether you are starting from a drawing or just a sample of the original equipment manufacturer.

We manufacture our own custom molds and fixtures for large orders. This reduces the delivery time and helps us control our expenses. We provide short-term flexibility and flexible tooling for small batch production. We can provide help in custom packaging, logistics management, private brand and so on.

You can work directly with our R & D and technical staff. We can provide recommendations for design changes that improve performance or manufacturing feasibility. We are ready to help from concept to delivery, whether you are trying to create a new axis concept or improve an old axis concept.

The Benefit of Choosing Ningbo Shengfa Hardware

* 18 + years of experience in forging automotive parts manufacturing

* Fully integrated production, including machining, inspection and forging

* ISO certified quality control system, with comprehensive reporting

* Reliable material sources and complete batch traceability

* Competitive pricing structure and fast lead time

* Engineering cooperation and responsive customer service

* Flexible quality management and scalable production batches

* Tracking records with OEMs and global aftermarket leaders

Serving Global Markets with Precision

Our location close to Ningbo Port gives us a good position to ship anywhere in the world. We cooperate with off-road vehicle manufacturers, trailer manufacturers, automotive suppliers and branded agricultural equipment. To provide trustworthy service and clear and timely communication, our team collaborates across time zones and languages.

We realize that performance is the key to gaining trust. That's why every forged axle on our ship embodies our dedication to excellence and our customers ' pleasure.

Please discuss how Ningbo Shengfa Hardware can help you complete the axle requirements. Discuss your next project, get a quote, or learn more, contact us. The forged stub axles that ensure the safe, stable and reliable rotation of the wheel is prepared by our team.
