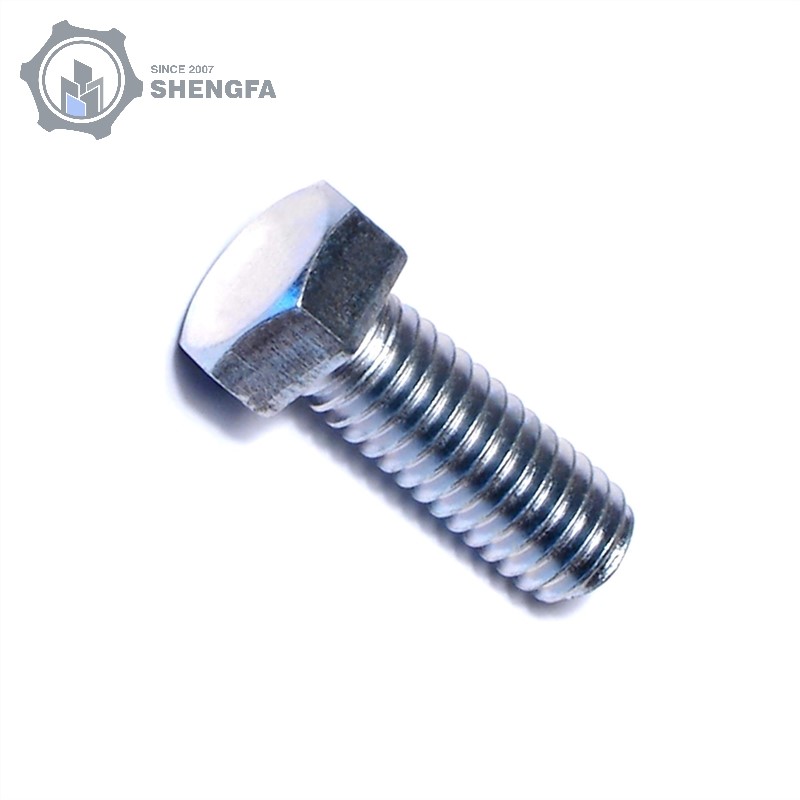

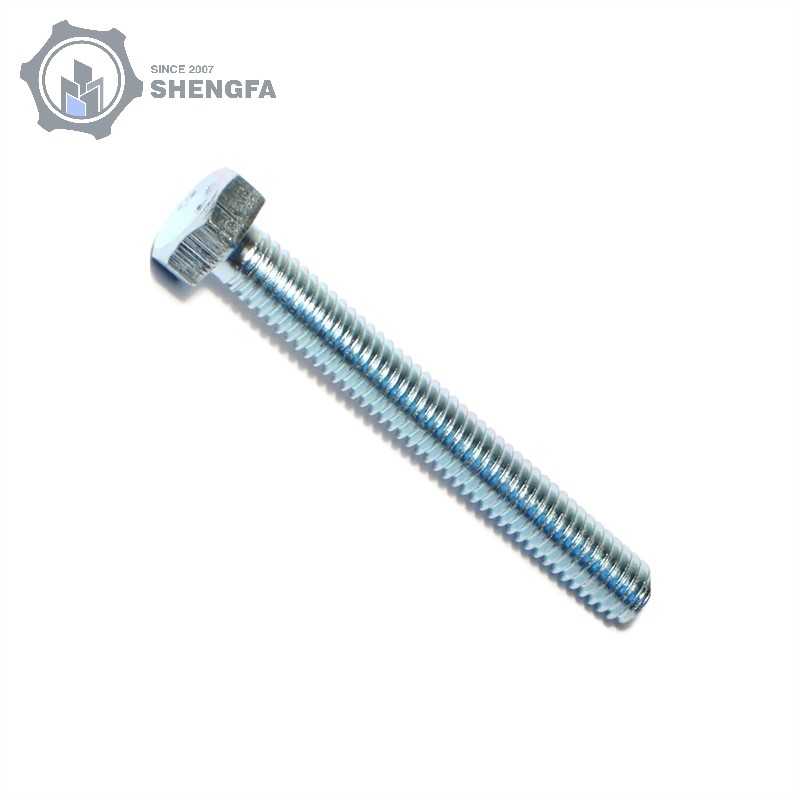

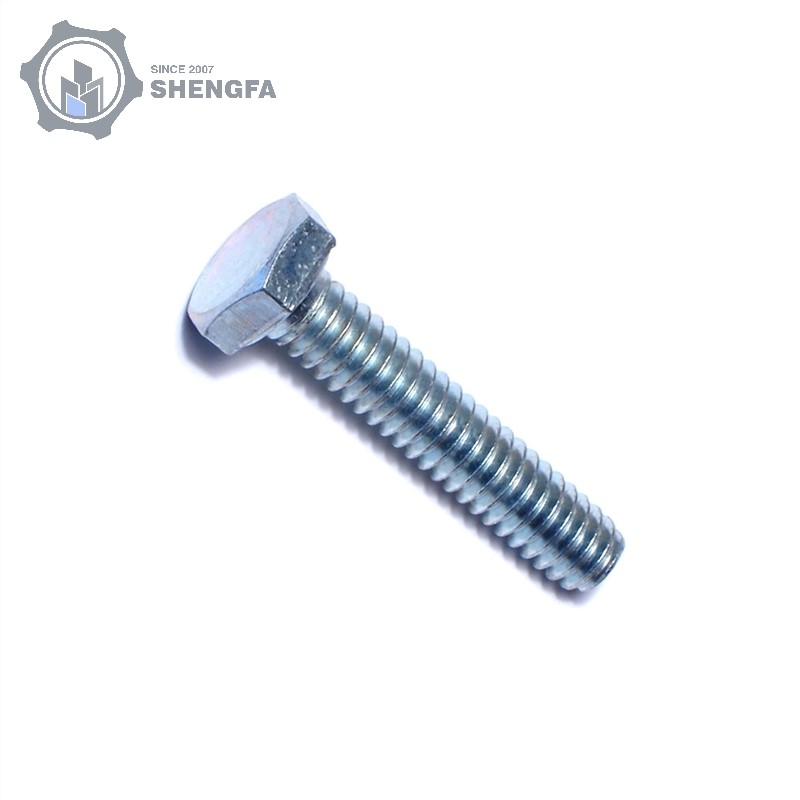

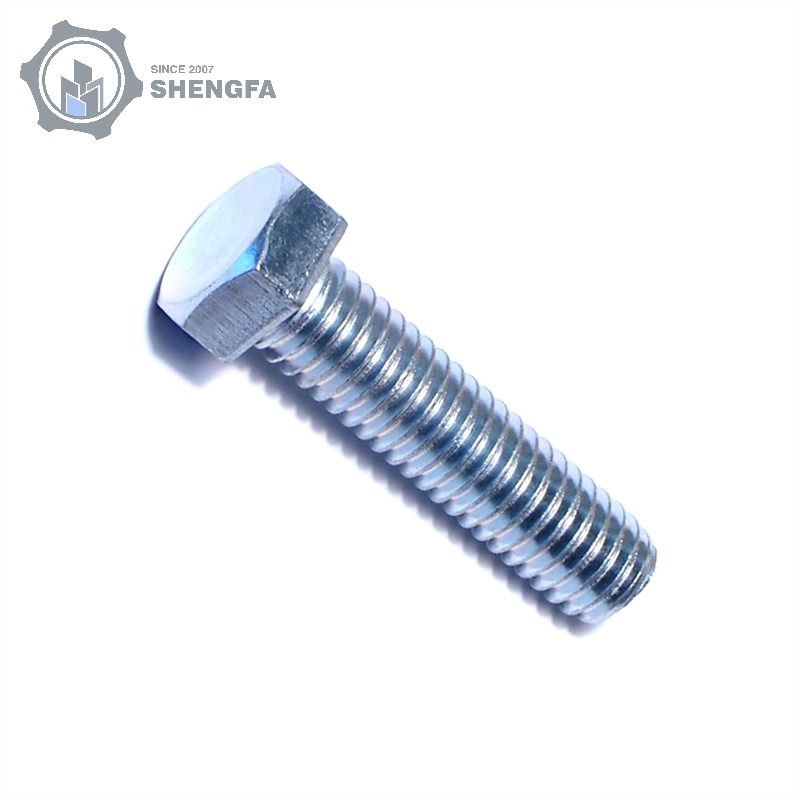

Threaded Hex Bolt

1. How We Define the Role of a Threaded Hex Bolt

In Ningbo Shengfa Hardware Factory, threaded hexagon bolts are far more than a typical fastener in our view. It is an important mechanical component that converts the energy of rotation into a stable clamping force, which keeps complex systems together under continuous load, vibration and environmental pressure. Hexagon threaded bolts are used in heavy industrial assembly, construction, automotive and machinery manufacturing to provide strong, durable and safe connections. Their thread handles ensure the adjustment meshing with the mating parts, and the hexagonal head shape is conducive to effective torque transmission.

In addition to its design, the perfect manufacturing of threaded hexagon bolts is the reason why it is truly reliable. Bolts must withstand dynamic force, temperature changes and repeated tightening cycles in the actual industrial environment without loosening or deformation. Whether bolts are used to fix chassis components, fixed transmissions, or fixed steel frames, we have an in-depth understanding of their role in the service process. This thinking has influenced how we produce threaded hexagon bolts and has made Ningbo Shengfa Hardware a reliable source of customer respect for mechanical integrity and consistency.

2. Our Manufacturing Process from Raw Steel to Finished Thread

The selection of materials is the first step in the operation of threaded hexagonal bolts. According to the application requirements of strength, ductility and corrosion resistance, we choose the advanced grades of carbon steel, alloy steel and stainless steel. According to the size and performance grade of the bolt, the steel wire or bar for forming is prepared by controlled heating or cold working method, and it is qualified by inspection.

In our manufacturing process, an important step is forging. The steel is formed into bolt head and bolt handle by hot forging or cold forging, and the internal grain structure is also compressed and aligned. Compared with bolts manufactured only by machining, this method greatly improves the fatigue resistance and bearing capacity of bolts. The geometric shape of the hexagon head is refined by CNC machining after forging, which ensures the unified wrench meshing and the dimensional correctness that meets the global standards.

One of the most important processes of threaded hexagonal bolts is the creation of threads. We mostly use thread rolling instead of cutting, through the displacement of the material under pressure to achieve the formation of the thread. This cold processing technology increases the ability to resist spalling and fatigue, strengthens the thread root, and makes the surface smooth. The final product is a threaded profile that maintains the clamping force during extended service time and is installed effortlessly.

In order to provide the required mechanical properties, heat treatment comes with it. In order to achieve 8.8, 10.9 and 12.9 grades, we adjust the hardness, tensile strength and elasticity by carefully adjusting the quenching and tempering. The bolt is then finished by surface finishing. Hot-dip galvanizing protects outdoor structures, black oxides support precise assembly, galvanizing provides corrosion protection for general industrial uses, and complex coatings such as Dacromet or Geomet meet the needs of heavy duty and automotive. Ningbo Shengfa Hardware carries out strict quality inspection at each stage to ensure the stable and reliable operation of each thread hexagon bolt.

3. Our Range of Threaded Hex Bolts for Diverse Industrial Demands

Due to the wide range of industrial uses, threaded hexagon bolts are made in a variety of configurations to meet a variety of mechanical requirements. Although some components rely on partial threaded bolts to provide improved shear strength at the connection interface, others require full threaded bolts to optimize meshing length and installation flexibility. The selection of bolt diameter, length, thread spacing and strength grade depends on the joint design, environmental exposure and load conditions.

In order to ensure compatibility with international equipment and fastening systems, we manufactured threaded hexagon bolts in accordance with international standards, such as the ISO measurement system and the UNC / UNF thread series. High-strength alloy steel bolts are commonly used in steel structures, industrial frames and automobile chassis, and their tensile strength and vibration resistance are crucial. Corrosion resistance is essential for long-term reliability applications, such as those exposed to wet, chemical or marine conditions, which are provided by stainless steel equivalents.

We support threaded hexagon bolts customized according to customer design, special tolerances or coating requirements other than normal specifications. Due to the consistency of mass production, the reliability of mechanical properties, and the timely delivery of mass production, we are relied on by many OEM customers. By adhering to strict process control and flexible manufacturing capabilities, Ningbo Shengfa Hardware ensures that our threaded hexagon bolts meet the requirements of standards and specific industries.

4. Where Our Threaded Hex Bolts Are Applied and Why They Matter

Modern engineering systems rely heavily on threaded hex bolts. They protect the engine assembly, suspension components, transmission housing and chassis structure in the automotive industry, where accurate preload and vibration resistance have a direct impact on the life and safety of the vehicle. These bolts are used in industrial machinery to support the continuous operation of hydraulic equipment, conveying systems, gearboxes, racks, etc. under various stresses.

Hexagon threaded bolts are used in the steel manufacturing and construction sectors for the construction of beams, columns, platforms and support structures subjected to mechanical stress, weather and thermal expansion. They are used in energy and infrastructure projects, and the failure of these projects is impossible, such as wind turbines, power plants, substations and pipeline systems. Fasteners are required in each case, which can maintain clamping force over time, resist corrosion, and work reliably in challenging environments.

Because threaded hexagon bolts are often used in important connection parts, their quality directly affects the life and safety of the entire system. Our dedication to accurate production, scrutiny and sustainable development is based on this obligation. When consumers choose our products, they are choosing manufactured fasteners to support the performance and stability of the systems they build, whether large industrial structures or tiny mechanical assemblies.

Threaded Hex Bolt — Product Overview Table
