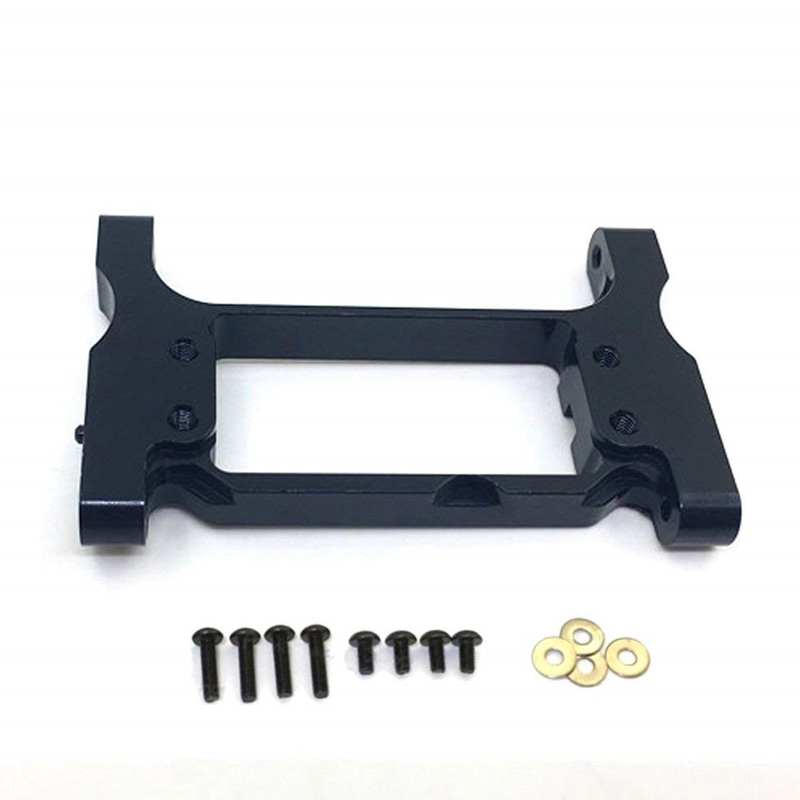

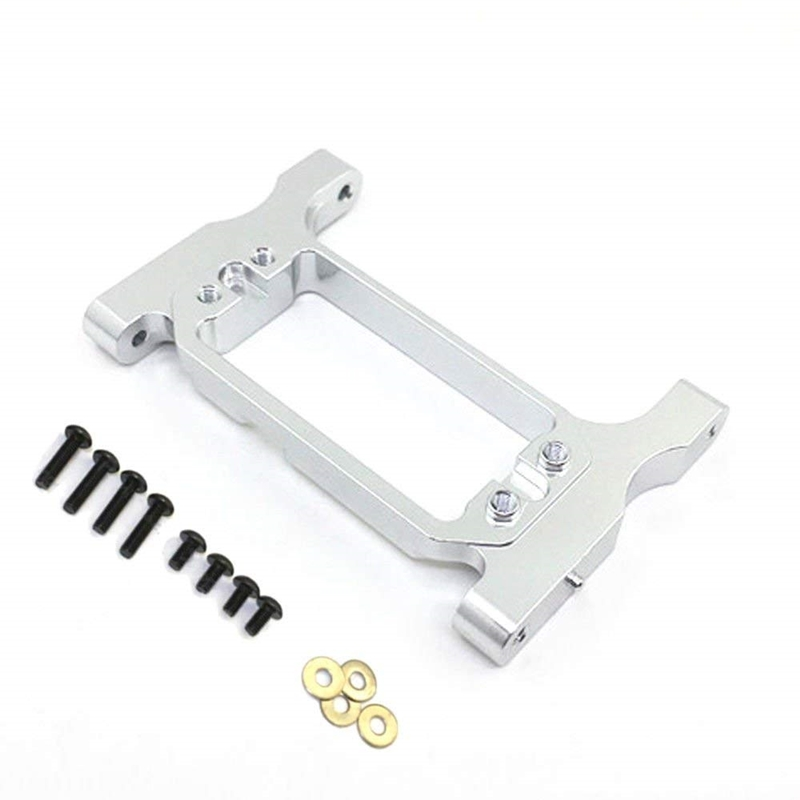

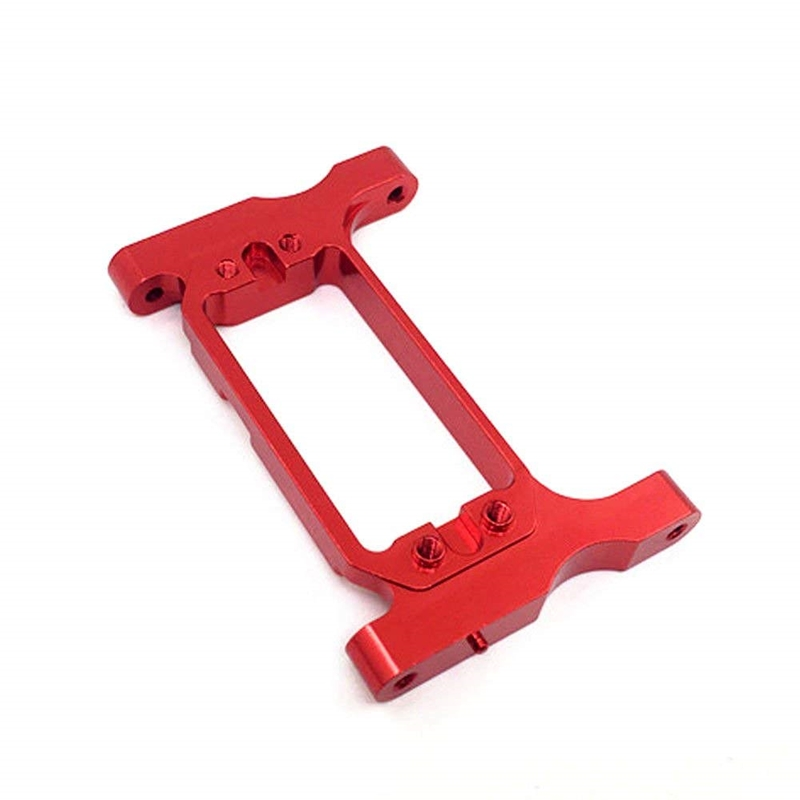

Aluminum CNC Front Steering Servo Mount

SHENGFA Aluminum CNC Front Steering Servo Mount is developed for 1/10 scale TRX-4 tracked vehicles and provides a stronger alternative to standard plastic servo brackets. Through CNC machining, the mounting structure achieves consistent dimensions and reliable assembly performance, helping reduce unwanted movement between the servo and steering components.

Ningbo Shengfa Hardware applies its precision manufacturing experience to RC components by combining machining capability, engineering support, and inspection processes. The company has been producing precision metal parts since 2007, serving industries including automotive, medical equipment, agricultural machinery, marine systems, and customized hardware applications.

Key Benefits

Reduced Steering Flexing for Better Control

Plastic servo mounts may deform when exposed to repeated steering loads, impacts, and off-road vibration. This deformation can affect steering response and create delayed movement between servo input and wheel direction.

The aluminum CNC structure provides:

1. The aluminum alloy construction offers higher rigidity than standard plastic brackets, helping maintain stable servo positioning during high-load steering operations.
2. The CNC-machined structure reduces deformation caused by repeated impacts, vibration, and continuous steering stress.
3. The reinforced mounting platform keeps the servo position more stable, reducing unnecessary movement between steering components.
4. The improved structural stability allows the RC crawler to achieve more responsive steering performance on technical terrain.

For RC crawler applications requiring accurate wheel control, a rigid mounting platform helps maintain consistent steering geometry during operation.

CNC Machining Accuracy for Reliable Assembly

The Aluminum CNC Front Steering Servo Mount is manufactured through precision CNC machining, allowing SHENGFA to control critical dimensions during production.

The machining process supports:

1. CNC machining ensures accurate mounting hole positions, allowing the servo mount to align properly with the original steering assembly.
2. Controlled machining parameters help maintain consistent dimensions between different production batches.
3. Precision surface finishing improves the overall appearance and contact quality of the machined component.
4. Stable machining accuracy helps achieve reliable fitting between the servo mount and related steering components.

SHENGFA uses coordinate measuring machines (CMMs), optical projectors, surface roughness testers, and other inspection equipment to verify machining quality. These capabilities help ensure that customized parts meet specified dimensional requirements.

Aluminum Alloy Structure for Long-Term Outdoor Use

RC crawlers are commonly exposed to mud, dust, moisture, and repeated impacts. Compared with plastic materials, aluminum alloy provides stronger mechanical support and maintains structural integrity under demanding conditions.

The main advantages include:

The anodized surface treatment improves corrosion resistance while providing different appearance options for customized RC builds.

Popular Compatibility Options for RC Upgrade Projects

The Aluminum CNC Front Steering Servo Mount is designed around the 1/10 scale TRX-4 platform, making it suitable for RC crawler upgrade applications and customized vehicle development.

1/10 Scale TRX-4 Compatibility

The mount integrates into the front steering assembly of TRX-4 tracked vehicles and is intended as a direct replacement component.

Typical application benefits include:

1. The reinforced aluminum structure improves steering system stability compared with standard plastic mounting solutions.
2. The rigid design reduces unwanted movement caused by bracket flexibility during off-road driving.
3. The improved servo support helps maintain better steering control during climbing, crawling, and obstacle navigation.
4. The direct replacement design simplifies installation without requiring major vehicle modifications.

Custom RC Aluminum Component Development

Beyond standard RC upgrades, SHENGFA provides CNC machining support for companies developing customized RC components.

Available development support includes:

1. SHENGFA can manufacture customized aluminum RC parts according to customer CAD drawings or technical requirements.
2. Prototype machining services are available for validating designs before larger production requirements.
3. Small batch production support allows customers to develop specialized RC components with flexible quantities.
4. Engineering teams can optimize structural designs according to machining feasibility and production requirements.
5. Different surface treatment options can be considered according to appearance and application requirements.

This capability allows RC brands and engineering teams to develop specialized components beyond standard aftermarket parts.

SHENGFA CNC Manufacturing Capability Behind RC Components

Ningbo Shengfa Hardware operates integrated manufacturing capabilities covering CNC machining, casting, forging, and inspection processes.

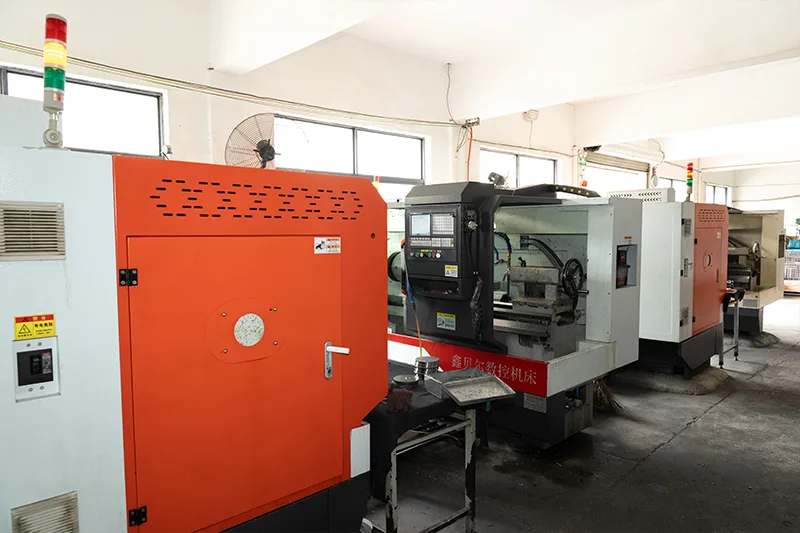

The factory is equipped with:

1. CNC turning machines are used for precision machining of rotary metal components.
2. CNC machining centers support complex multi-process machining requirements for customized parts.
3. X-ray inspection equipment helps analyze internal structures and identify potential defects.
4. Coordinate Measuring Machines (CMMs) verify critical dimensions to maintain machining accuracy.

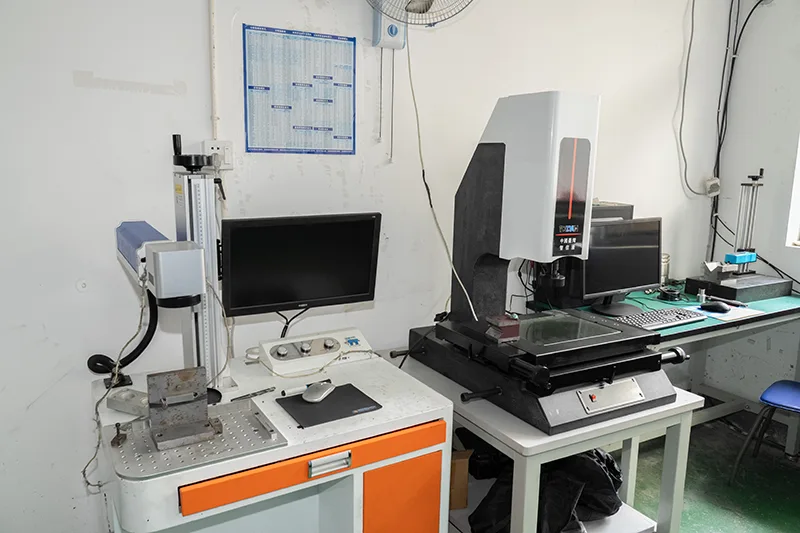

5. 2D optical projectors are applied for contour measurement and profile inspection.
6. Ultrasonic cleaning equipment removes machining residues from precision components.
7. Surface roughness testers verify that finished surfaces meet specified requirements.

This manufacturing system allows SHENGFA to support different production requirements, from prototype validation to repeated production runs.

Custom CNC Machining Support for RC Parts

The Aluminum CNC Front Steering Servo Mount represents one example of SHENGFA’s CNC machining capability for customized metal components.

The company also produces:

1. SHENGFA can manufacture RC steering components designed for different vehicle structures and performance requirements.
2. The company provides CNC-machined suspension upgrade parts for customized RC applications.
3. Drivetrain components can be developed according to specific mechanical designs and technical specifications.
4. Custom aluminum accessories can be produced based on customer drawings or samples.

Customers can provide drawings, samples, or technical requirements for project evaluation. SHENGFA’s engineering team can assist with manufacturing adjustments to improve machining feasibility while maintaining design requirements.

With CNC machining, die casting, investment casting, and forging capabilities available, Ningbo Shengfa Hardware provides flexible production options for different metal component applications.

Global Manufacturing Experience and Quality Control

Since 2007, Ningbo Shengfa Hardware has supplied precision metal components to customers in:

1. SHENGFA has developed stable cooperation with customers in the USA and Canada through precision manufacturing services.
2. The company supplies metal components to markets including Japan, Korea, Vietnam, and Malaysia.
3. SHENGFA supports customers across the United Kingdom and European markets with customized manufacturing capabilities.
4. The company also serves customers in Australia and New Zealand with precision-machined metal parts.
5. Global customers benefit from SHENGFA’s experience in manufacturing communication, quality inspection, and production coordination.

The company focuses on stable manufacturing processes, inspection control, and clear technical communication throughout each project.

Common Questions

Why upgrade from a plastic servo mount to an aluminum CNC version?

An Aluminum CNC Front Steering Servo Mount provides a more rigid mounting structure than many plastic brackets. This helps reduce flexing under steering loads and supports more consistent steering response during demanding RC crawler operation.

Does this mount support the original TRX-4 steering system?

The mount is designed for 1/10 scale TRX-4 tracked vehicle applications. Compatibility should be checked according to the specific vehicle configuration and installed servo system.

Can SHENGFA manufacture customized RC parts?

Yes. SHENGFA supports customized CNC machining projects based on customer drawings, samples, and technical specifications, including prototype and batch production requirements.

What information is needed for CNC RC part development?

Typical project information includes:

Providing these details helps evaluate machining processes and production feasibility.
