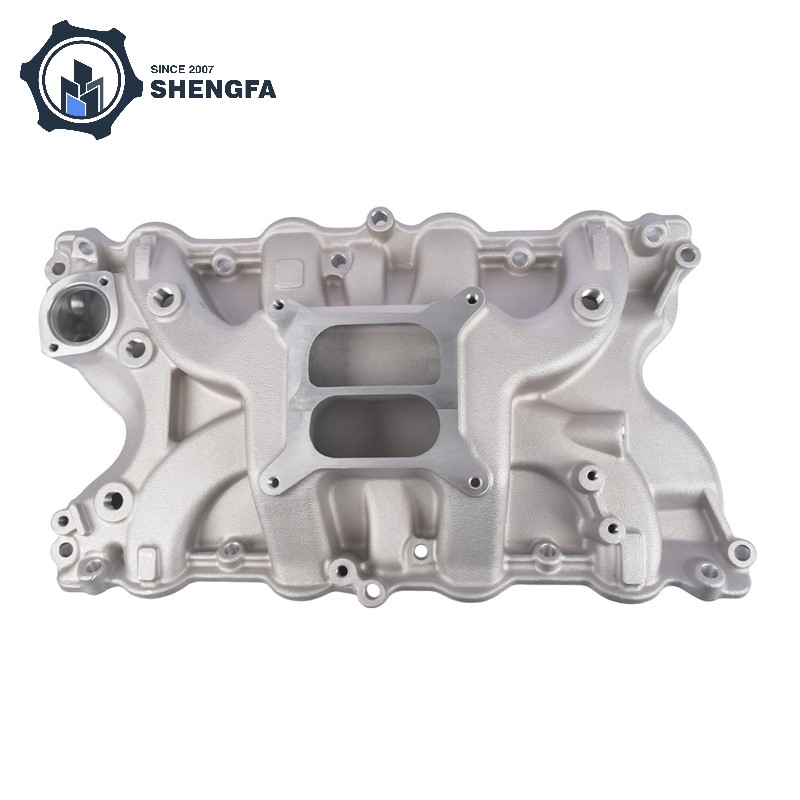

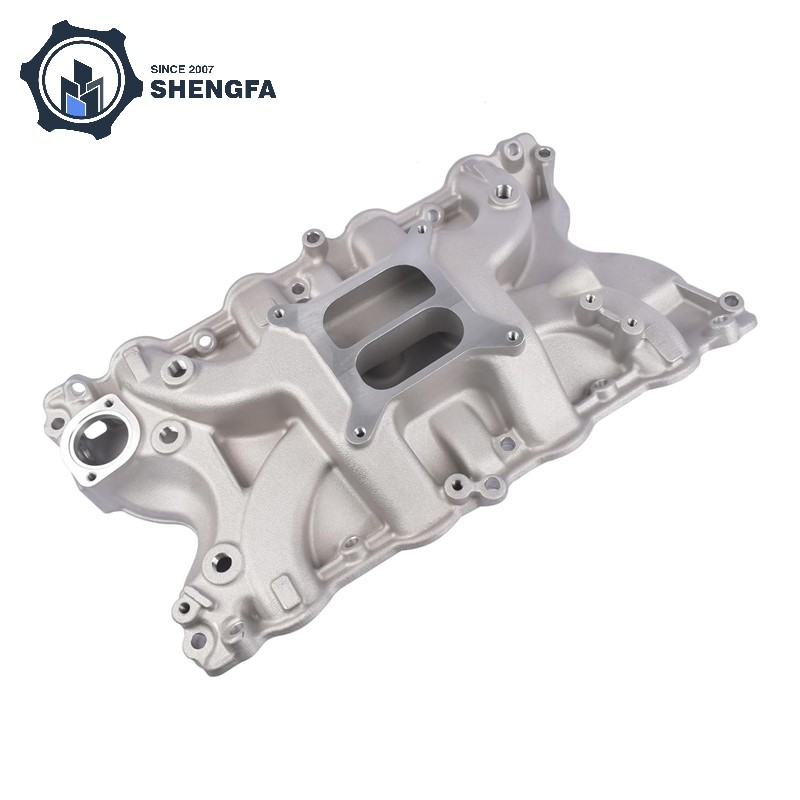

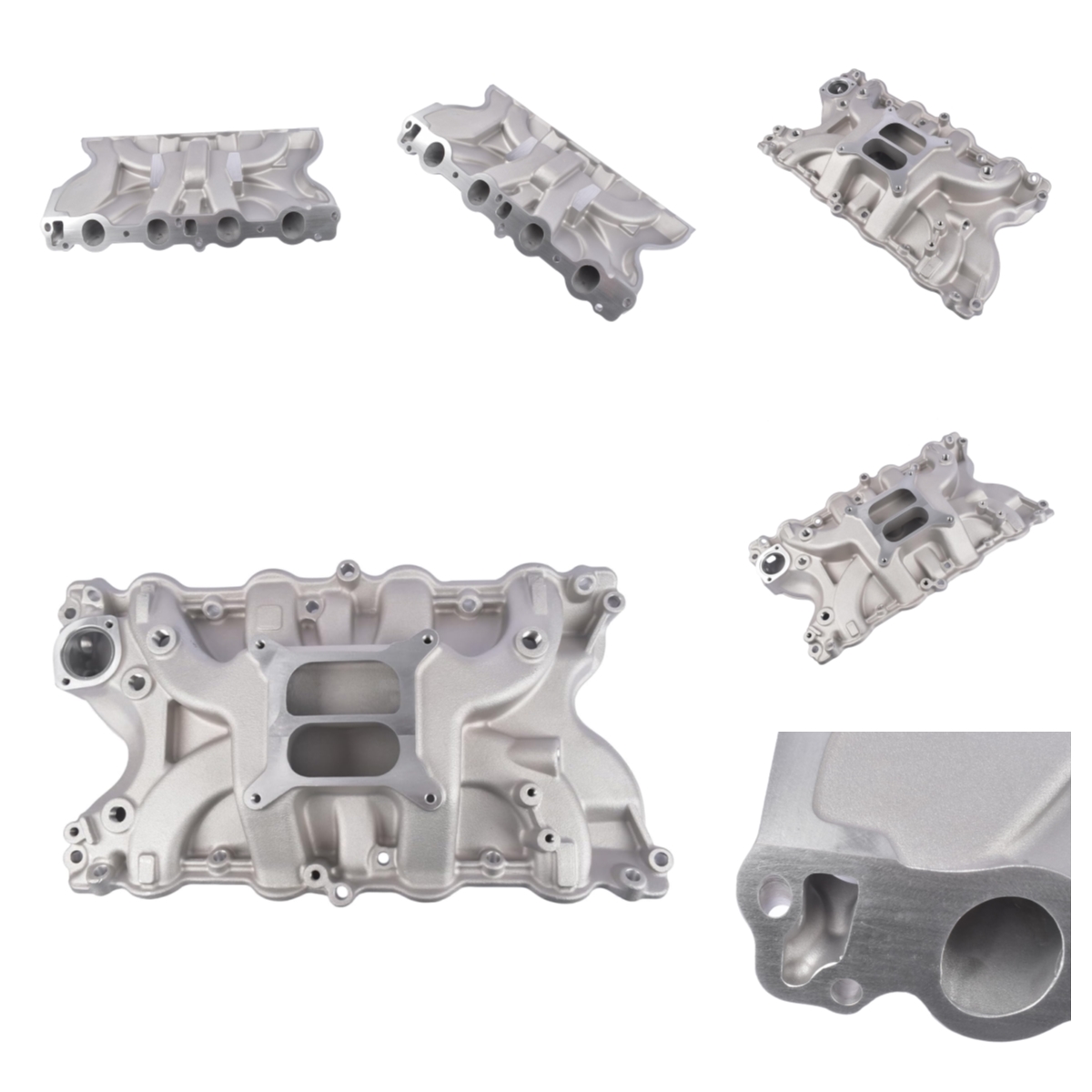

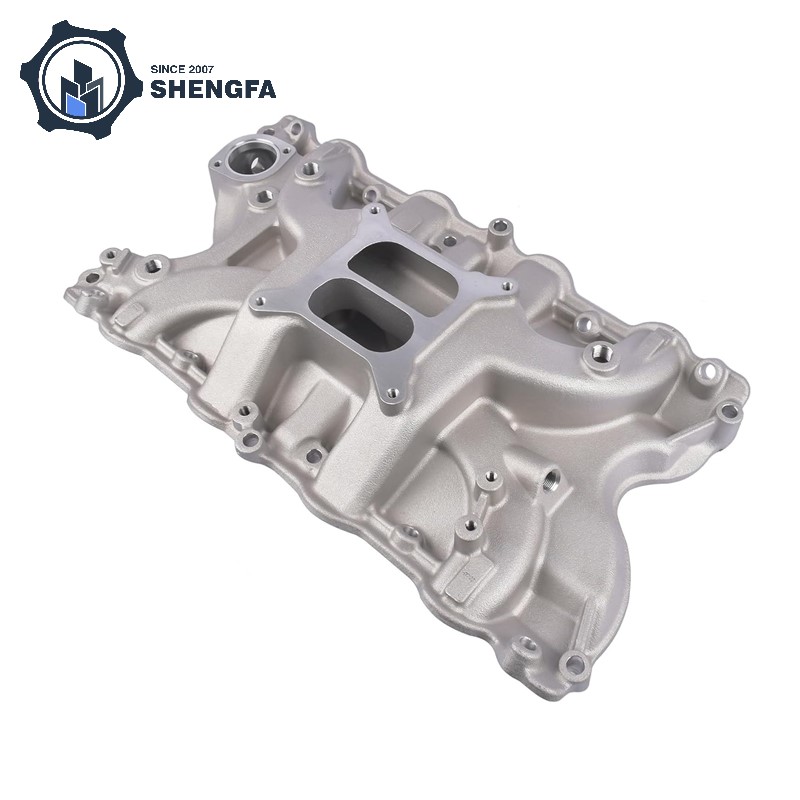

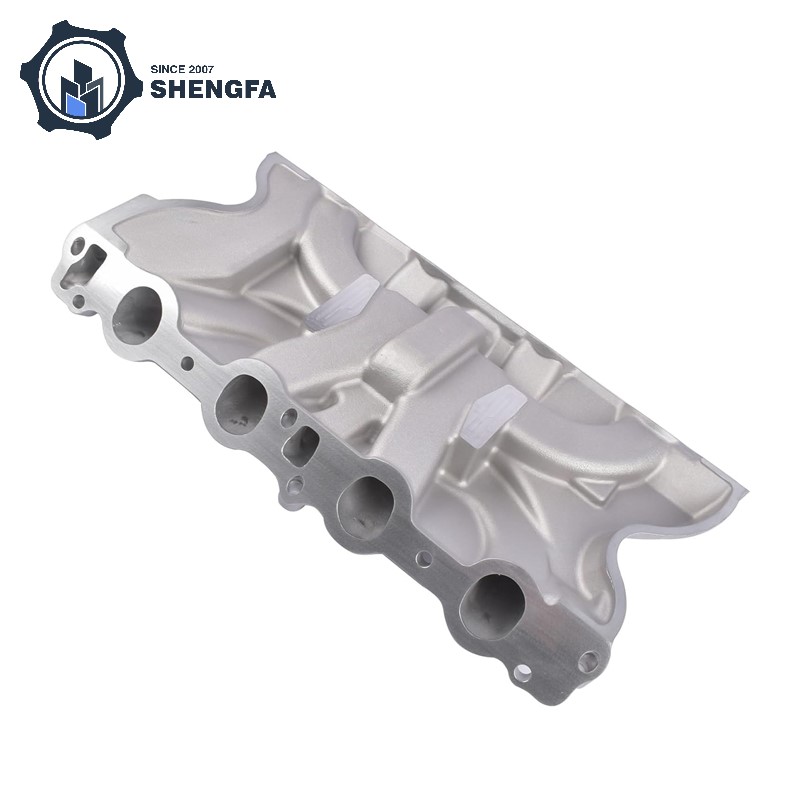

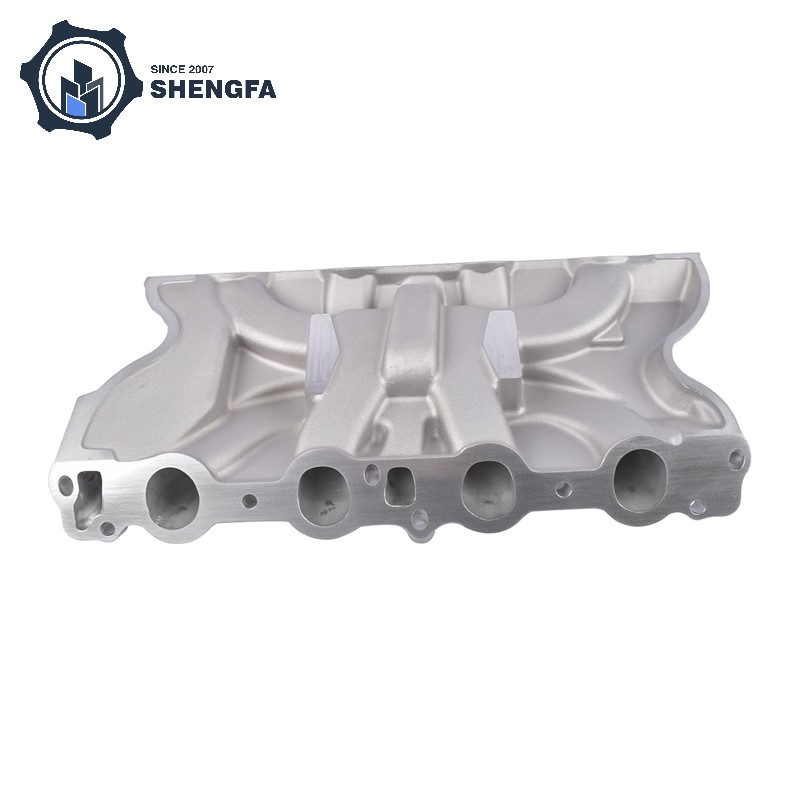

Engine Intake Manifold

With nearly two decades of experience in the automotive parts industry, we have a deep understanding of how to produce manifolds that meet stringent performance standards and provide long-term reliability and integration flexibility for different engine platforms. Thanks to a thriving automotive supply chain and convenient sea and air transport corridors, we are able to efficiently and continuously support our customers around the world.

The intake manifold's function may seem simple - introducing air or an air-fuel mixture into the engine cylinder - but its effect on the overall performance of the engine is far from simple. The geometry, material composition and internal flow characteristics of the manifold affect torque transmission, fuel efficiency, throttle response and emissions. In the manufacturing process of Ningbo Shengfa Hardware, each engine intake manifold has been precisely designed to improve the performance of the engine, the most important of which is in the low and medium speed range.

Our dual-plane, low-lift, 180-degree ignition sequence manifold design has been fine-tuned to provide improved torque over a wide speed range, especially with a peak of around 3500 rpm in a 350 cubic inch engine. This design is very suitable for applications that require strong zero-velocity acceleration and consistent mid-range tension. During the test, our manifolds showed an average torque increase of more than 5 ft-lbs between 3000 and 4500 RPM, which translates into actual performance improvements, whether parking or overtaking on the motorway.

Choosing aluminum as the material of the intake manifold is not only a cost-saving measure, but also a decision to improve performance backed by data and engineering logic. Aluminum has the characteristics of light weight, high strength and corrosion resistance, making it an ideal candidate material for engine compartment environment exposed to high temperature and chemical environment. More importantly, aluminum dissipates heat more efficiently than cast iron or plastic alternatives. This thermal conductivity helps to maintain the inlet air cooler, thereby increasing air density and supporting more complete combustion.

The durability of Aluminum under thermal cycling conditions means that manifolds made of this material can usually last for more than ten years without significant degradation. Our customers have reported consistent performance, with no signs of stress cracking or thermal fatigue even after long-term use of high-demand engines. In addition, aluminum allows for more complex internal geometries during casting, which means that the flow channels in our manifolds can optimize flow characteristics to reduce turbulence and promote uniform airflow distribution across all cylinders.

The manufacturing process we rely on - cold chamber die casting - further improves the structure and size quality of our engine intake manifold. In this process, molten aluminum is injected into the steel mold under high pressure to obtain dense, precise and extremely porous parts. Unlike the hot-chamber method, the cold-chamber technology is ideal for aluminum alloys because it prevents corrosion of the injection parts and ensures cleaner, stronger parts.

At Ningbo Shengfa Hardware Factory, we designed and produced our own molds, allowing absolute control of cavity design and surface finish. During the casting process, we maintain strict quality tolerances to ensure that the size of each manifold is consistent with the CAD specification, usually within ±0.1mm. This high level of accuracy minimizes the risk of air leakage, uneven installation or incompatibility with engine gaskets. In addition, each part must undergo a comprehensive inspection before shipment, including pressure testing, dimensional analysis and appearance inspection.

Customization is a basic part of our service model. We recognize that different engine and vehicle platforms require unique solutions, which is why we are able to provide comprehensive design-to-production services based on each customer 's needs. Whether it is the customer's need for a specific installation flange angle, sensor port integration, or the optimized flow channel size of a turbocharged engine, we work closely with their engineering team to design a manifold that can be successfully integrated into their system. We ensure that each manifold is not only physically compliant, but also operates as expected in a real engine environment, starting from the first 3D modeling phase and continuing through sample casting, functional testing, and large-scale manufacturing. Because of this way of cooperation, we can establish lasting relationships with customers in North America, Europe, Southeast Asia and the Middle East.

Our dedication to traceability and quality control separates us from Ningbo Shengfa Hardware. Since each engine intake manifold we produce has a unique batch number, we can track our material sources, casting specifications and post-processing procedures at any time. In today's quality-driven automotive supply chain, accountability and transparency are crucial, and this level of detail is essential. Process inspection, final quality audit and customer feedback loops are all part of our quality management system, and our ISO certification facilities follow world standards. These solutions not only increase the reliability of the product, but also calm our customers because they know that their parts in the engine exist for continuity and execution.

For many of our customers, cost-effectiveness and scalability are as important as performance and durability. By using cold chamber die casting technology and investing in precision CNC post-processing production line, a large number of engine intake manifolds with reliable quality and fast delivery time can be manufactured. We can easily modify production plans to meet customer needs, whether they require a stable OEM manufacturing supply or a limited number of running sports applications. In addition, our internal skills reduce dependence on external processing or finishing, improve overall efficiency, and reduce the possibility of errors.

As the engine becomes more efficient, compact and dependent on electronic control, the importance of the intake manifold has only increased in recent years. Well-designed manifolds not only support air delivery, but also support sensor integration and emission control strategies. At Ningbo Shengfa Hardware Factory, we have been looking for innovative materials and designs to improve the airflow of the engine while still being able to afford mass production. In order to study the advances in channel length, chamber design and surface treatment that may lead to the next generation of intake performance, our R&D team is using simulation, airflow testing and prototype production.

Over the years, we have shipped hundreds of thousands of engine intake manifolds to our customers and they are back thanks to our reliability, timeliness and technical assistance, as well as the quality of our products. As production increases, many customers have added orders and integrated our manifolds into the new engine platform. Our offer is a solution, not just a part; it is built on the basis of engineering integrity, is produced in the careful craft and honest communication.

When selecting suppliers for key engine components such as intake manifolds, experience, consistency and technical depth are not negotiable. These three are combined in Ningbo Shengfa Hardware Factory to produce products that meet the stringent specifications of contemporary engines. Our production of aluminum alloy intake manifolds is the result of fine material selection, precise casting process, fine quality control and collaborative design methods. We help customers achieve improved torque transmission, smoother throttle response, and each manifold we manufacture has a more powerful engine system. Ningbo Shengfa Hardware is still ready to provide customized, large-scale and innovative capabilities for trusted partners.
