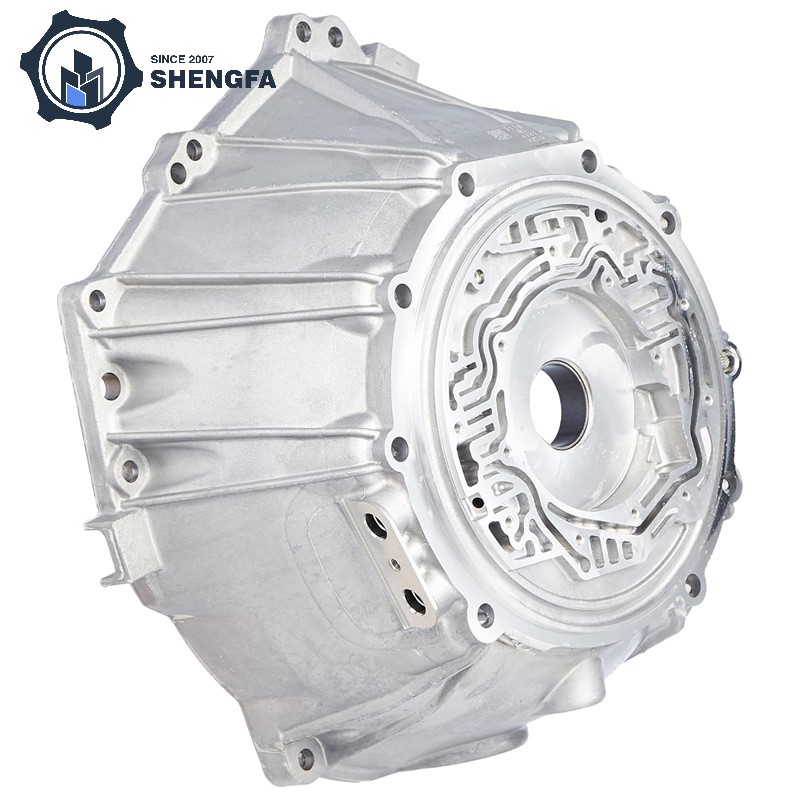

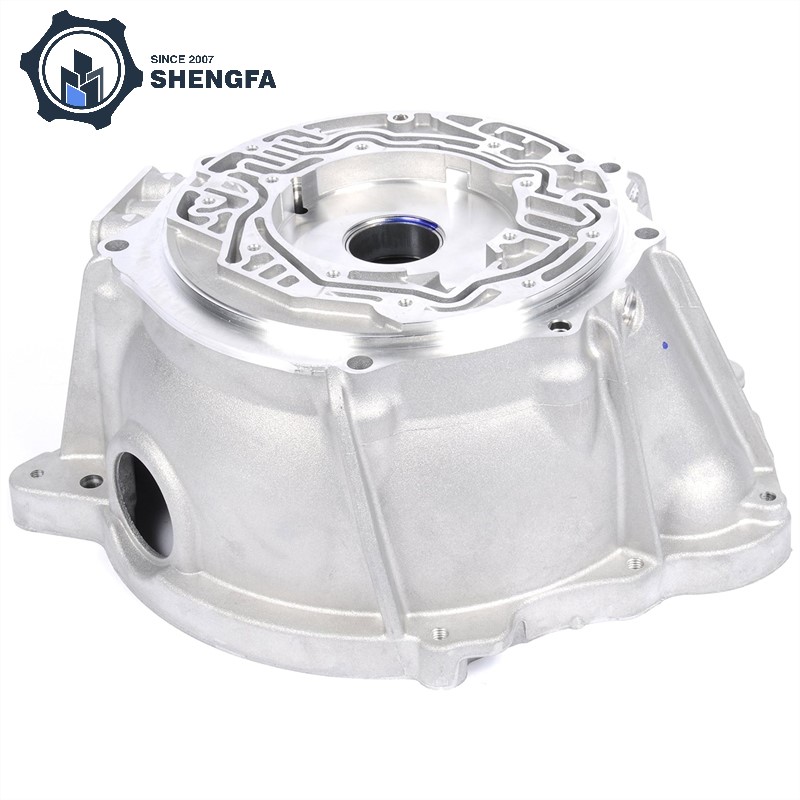

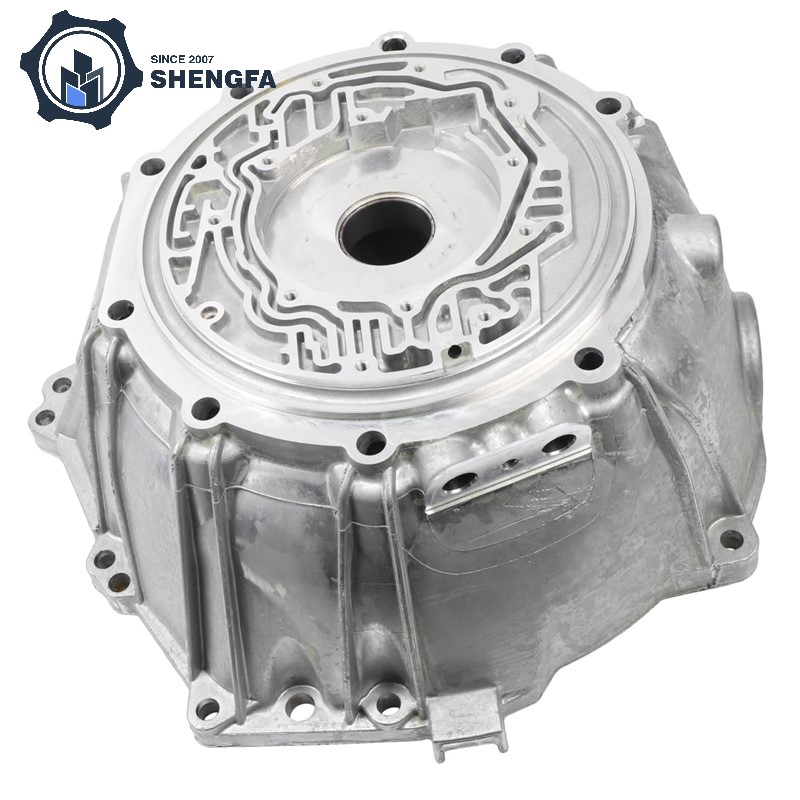

The Aluminium Transmission Housing from Ningbo Shengfa Hardware is manufactured for automotive transmission and clutch assemblies using cold chamber aluminum die casting and precision CNC machining. The housing design can integrate complex internal cavities, radial reinforcing ribs, a bolted mounting flange, and a central bearing seat within a single cast structure. CNC machining finishes critical mounting and bearing interfaces to meet specified assembly tolerances.
ADC12 and A380 aluminum alloys are available for custom projects. From mold development and casting to precision machining and inspection, Ningbo Shengfa Hardware supports OEM/ODM production based on component drawings and application requirements.
Cold chamber die casting forms the main housing geometry by injecting molten aluminum into a precision-machined steel mold under high pressure. This process accommodates complex shapes and integrated structural features, reducing the amount of material that must be removed during subsequent machining.

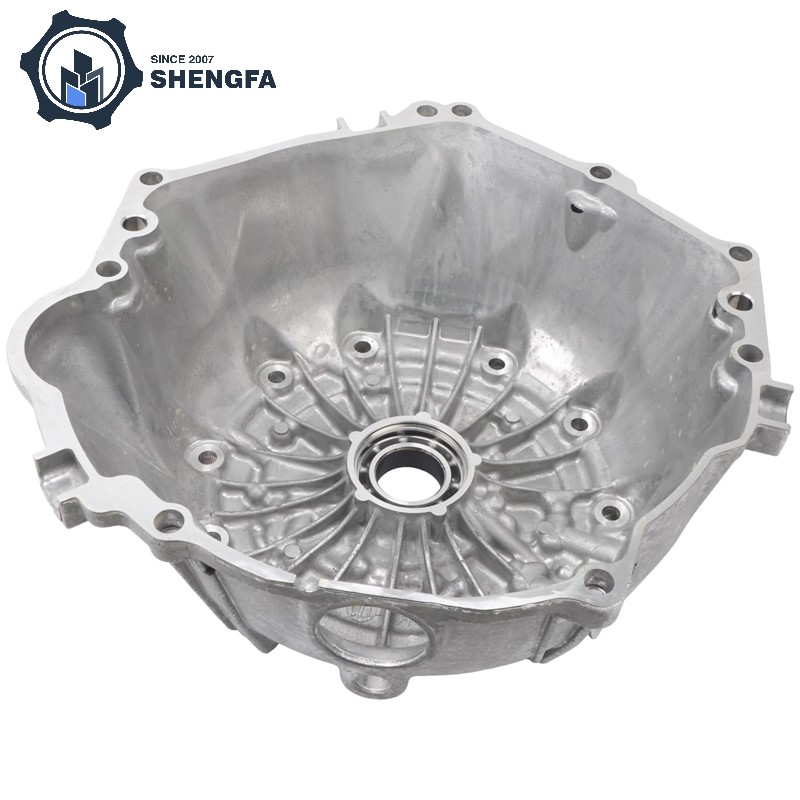

The housing can incorporate complex internal cavities and radial reinforcing ribs to support structural rigidity while controlling component weight. The flange layout and side openings are designed around the mounting and assembly requirements of the transmission or clutch system.
Multiple bolt holes around the flange provide mounting points for assembly integration. CNC machining finishes these holes, the central bearing seat, and other specified interfaces to achieve the dimensional accuracy and alignment required by the component drawing.
Inspection can cover critical dimensions, surface condition, and casting integrity. Leak testing and X-ray inspection are available for projects that require these checks, helping identify leakage or internal casting defects against defined acceptance criteria.
Custom aluminum housings accommodate transmission assemblies requiring defined mounting geometry, internal structural features, and precision-machined interfaces. The casting and machining plan can be developed around the assembly layout, bearing-seat dimensions, and installation requirements.
The same die-casting and CNC machining capabilities support custom clutch housings and related automotive aluminum components. Mounting features, internal geometry, and machined surfaces can be tailored to the specified design and production requirements.
Manufacturing begins with melting the selected aluminum alloy in a separate furnace.
The molten metal is transferred into the cold chamber shot sleeve, then driven into the steel mold by the injection mechanism.
After solidification, the mold opens and the casting is removed for trimming and deburring.
CNC machining follows casting to finish designated mounting holes, bearing seats, and other precision interfaces. Dimensional inspection and project-specified tests are then performed according to the quality requirements. This combination of die casting and targeted machining produces the main housing structure while maintaining control over critical assembly dimensions.
Since 2007, Ningbo Shengfa Hardware has provided custom metal manufacturing services. Aluminium Transmission Housing projects can include mold development, cold chamber die casting, CNC machining, and finished-component inspection within one production workflow.
Customization can cover ADC12 or A380 alloy selection, housing geometry, flange and bolt-hole layouts, bearing-seat dimensions, machining tolerances, and specified surface treatments. Manufacturing planning can accommodate development samples, small-batch orders, and volume production, with tooling and machining arrangements based on the component design.
