Agriculture Investment Castings

For over 15 years, SHENGFA Hardware has been providing investment products for a wide variety of industries from Ningbo China, including the agriculture, construction, food service, medical, and automotive industries. Agriculture Investment Castings are one of the main products we provide for our customer from all over the world. Our customers know they can trust our agricultural investment castings for quality and affordability. Our agricultural investment castings are dimensionally and geometrically complex and produced to net shape, minimizing the need for secondary machining. We will never try to make you pay more than you should for our products.

Send Inquiry

Product Description

Investment castings can be used to customize a variety of metal components for industries like medical, construction, mining, automotive, etc. Together with other industries, agricultural machinery is also one of the main fields that investment castings are applied for. At SHENGFA Hardware, Agriculture Investment Castings occupy about 20% of all the investment castings made. We can see that investment castings play an important role for agricultural machinery parts manufacturing.

Benefits of Precision Investment Casting for Agricultural Applications

Agricultural components must be able to maintain structural integrity under harsh environmental conditions. As a lost wax casting process, agricultural investment castings can provide durable, detailed parts with long life-cycles, high load bearing properties, and excellent corrosion resistance. In addition, investment casting also allows for faster production and inexpensive tooling costs, making it a convenient and affordable option for a variety of industries.
All our agricultural & farm products are made in the Ningbo China and designed according to customer demands. From raw materials selecting to complete manufacturing and assembly, SHENGFA Hardware has the capabilities and expertise necessary to cater to all your project needs.
We normally call “Agriculture Investment Castings” as Agricultural Wear Parts or Tillage Tools. To maximize the accuracy of agricultural investment castings, such kind of products are designed and produced in precision investment castings. There are a lot of advantages to import precision castings from China factory, such as low cost, quick delivery, good quality and service, etc. All these factors attract our customers to purchase agricultural parts from our factory. SHENGFA Hardware can manufacture investment castings in materials with good wear resistance. We can produce agricultural investment castings for:
Tractors
Harvesters
Planting equipment
Seeding equipment
Tillage equipment

For medium to long-run agricultural investment castings production, count on the experts at SHENGFA Hardware.

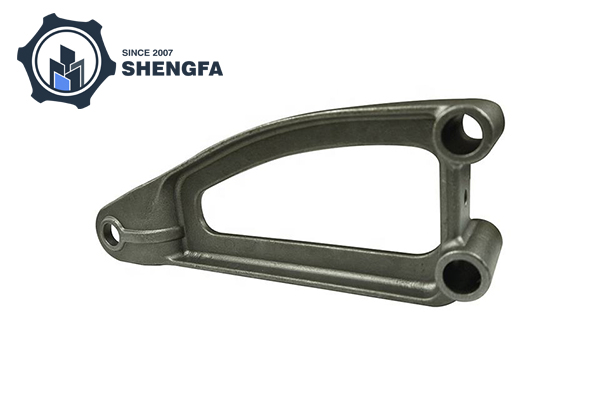

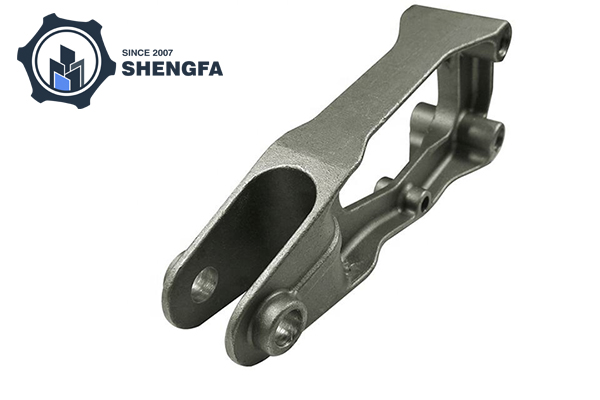

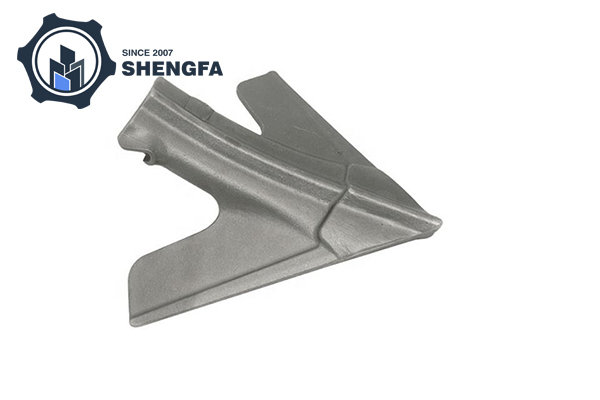

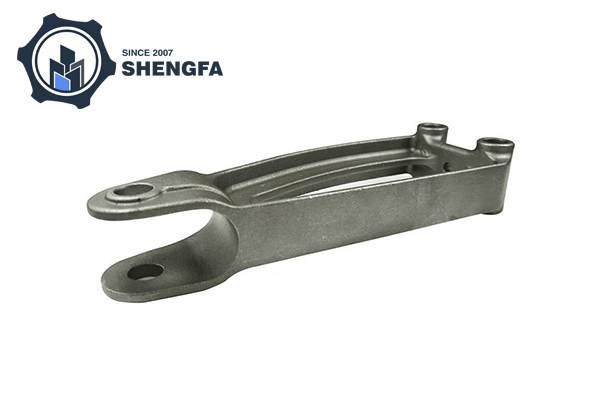

Agriculture Investment Castings Description

Material	Carbon steel, Alloy steel, Stainless steel, Aluminum Alloy, Copper, etc.
Process	Lost wax casting(investment casting) + CNC machining
Casting dimension tolerance	CT7
Casting surface roughness	Ra 12.5 um
Casting weight range	0.1-90 kg
Casting Size	Max linear size: 1200 mm, Max diameter size: 600 mm
Machining Precision	Positioning accuracy 0.008 mm, Rep. position. accuracy 0.006 mm
Machining surface roughness	Ra0.8 ~ 6.3 um
Max Travel Of Spindle	1900 mm x 850 mm x 700 mm
Max Turning Diameter	830 mm
Material standard	GB, ASTM, AISI, DIN, BS, JIS, NF, AS, AAR
Surface treatment	KTL (E-coating), Zinc plating, Mirror Polishing, Sand Blasting, Acid pickling, black oxide, Painting, Hot galvanizing, Powder coating, Nickel plating.
Service available	OEM & ODM
Quality control	0 defects,100% inspection before packing
Application	Train & railway, automobile& truck, construction machinery, forklift, agricultural machinery, marine parts, petroleum machinery, construction, valve and pumps, electric machine, hardware, power equipment and so on.
