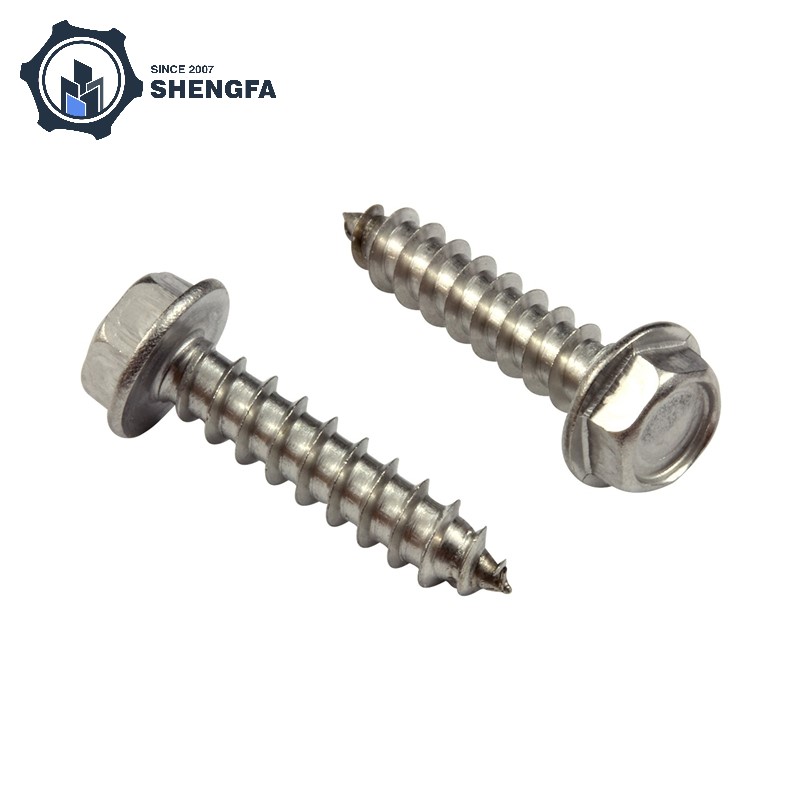

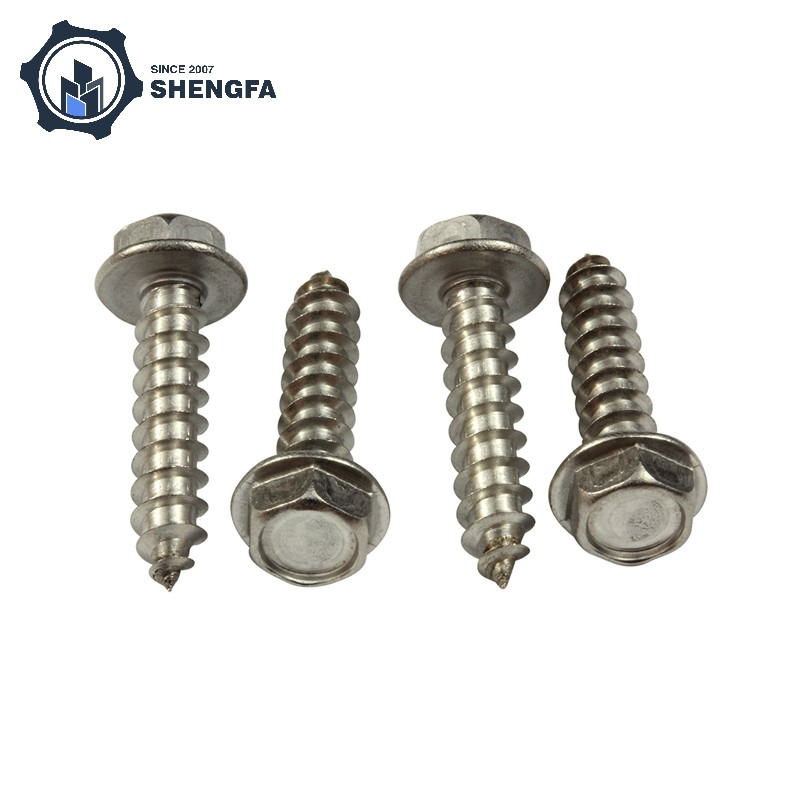

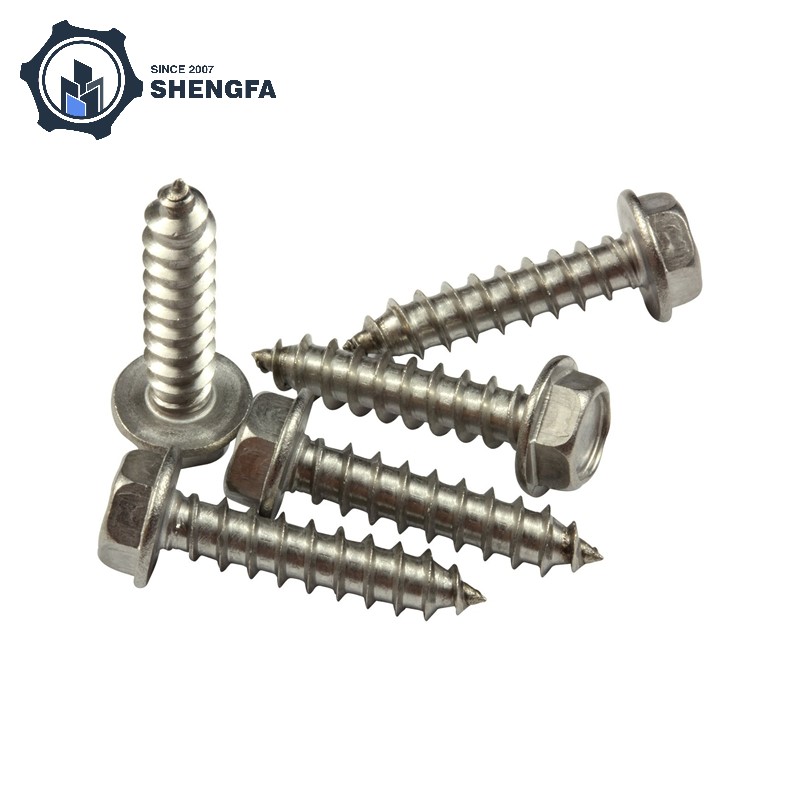

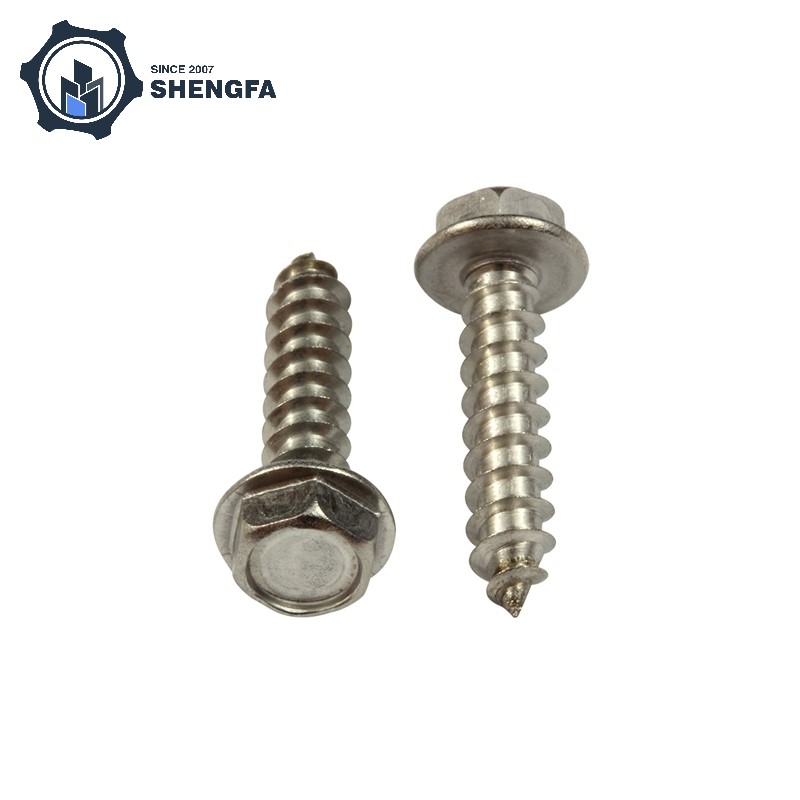

Hex Head Screw

Hex head screws are the key components of structural assembly, mechanical reliability and technical accuracy in various fasteners used in modern industry. Its threaded handle provides uniform clamping strength across metal, wood, composite and multi-material joints, and its unique six-sided head provides installers with safe torque control. The production of Ningbo Shengfa Hardware Hexagon Head Screw is a workflow designed based on metallurgy, dimensional correctness and performance under long-term industrial stress. It goes beyond a simple process of formation. Each screw is manufactured to meet the requirements of variable load, environmental exposure, mechanical vibration and assembly line consistency.

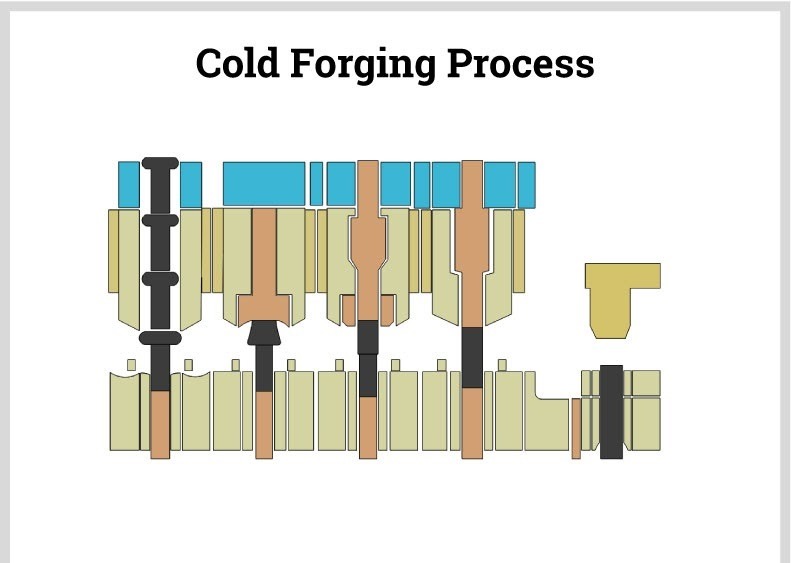

The choice of materials is the first step towards the stability of the hexagonal head screw. According to the mechanical grade and environmental requirements, Shengfa Hardware selects carbon steel, alloy steel, stainless steel or special grade corrosion resistant, high temperature resistant or fatigue resistant steel. Before entering the cold heading stage, the high-tonnage equipment manufactures the thread head on a single continuous press, and it is necessary to check the uniformity of the raw material steel wire. This cold processing method creates a head that can withstand repeated torque without deformation by aligning the internal grain structure. The accuracy of this step determines the shape of the hexagon head and the overall strength distribution of the fastener.

Once the head is formed, the threading process begins. Shengfa Hardware adopts thread rolling technology instead of cutting off thread, which weakens the steel structure. Rolling produces a thread profile that more successfully interacts with nuts, tap holes, and structural parts, and adds a smooth, work-hardening surface to improve tensile strength. In addition, the technology also improves the fatigue resistance of the screw so that it can withstand cyclic loading and vibration, which is crucial for heavy industry, automotive and mechanical applications.

Another step in determining performance is heat treatment. Depending on the specification, the screw can combine a strong inner core with a hardened shell by surface hardening, or obtain a higher tensile grade by quenching and tempering. By adjusting the thermal cycle, the shear strength, the anti-stripping ability of the thread and the ability of the screw to withstand the clamping force at high torque are enhanced. The heat treatment process ensures stability under harsh conditions, whether it is required for standard strength or high tensile levels for engines, chassis, and pressure-bearing systems.

As many installations expose fasteners to chemicals, humidity or external weathering, surface quality is also critical. Although hot-dip galvanizing provides thicker and more durable corrosion resistance for structural and outdoor applications, zinc coatings are often used for general protection. Although the change in stainless steel provides inherent corrosion resistance without the need for additional coatings, the black oxide provides a clean industrial appearance and moderate protection. Hex head screw can be used in a variety of industries, including construction, energy equipment and marine conditions, benefiting from the possibility of these finishing.

A Diverse Family Within a Single Fastener Type

Although seemingly simple, hexagonal head screws have a surprising variety of forms to meet various technical requirements. Thread pitch, head size, stem length, drive type, surface quality and mechanical grade are some of the usually not immediately obvious changes. In order to meet world standards, the metric and inch series screws produced by Shengfa Hardware are compatible with foreign machinery, tools and equipment.

Although some screws have a partially threaded handle to improve the shear strength of the structural joint, others have a fully threaded handle to obtain the best grip. The coarse thread version can achieve fast connection in softer materials or general structures, while the fine thread version can achieve more accurate tightening, especially in mechanical and automotive systems. The high strength alloy steel version supports load-bearing and heavy vibration applications when stainless steel is used in high humidity, chemical and marine environments. These differences ensure the mechanical reliability of the hexagon head screw and make it easy to adapt to various industries.

In addition to the basic scope, the hardware also integrates customization throughout the manufacturing process. When customers require screws to be able to withstand high torque, withstand continuous impact loads, or work under corrosive conditions, the factory will modify the shank diameter, thread geometry, heat treatment cycle, or coating system to achieve the desired performance. Due to its versatility, the hexagon head screw can be used as a precision engineering component or as a universal fastener, depending on the engineering needs.

Supporting Global Industries with Reliable Fastening Performance

The strength of the hex head screw depends not only on its design, but also on its reliability in a wide range of applications. It is widely used in the construction industry for pipelines, equipment installation systems, mechanical devices, steel structures and building connections. Because of its six-sided head, even in the case of frequent vibration and load changes, installers can use power tools or manual wrenches to apply high torque to ensure that the assembly is compact and firm.

Hexagon head screws are widely used in the automotive industry to withstand heat and vibration components, such as brake assembly, suspension system, engine, chassis frame and so on. Thanks to their precise threads and reliable torque performance, each joint will remain intact for millions of cycles. Hexagon head screws are reliable connectors for fixing moving parts, shells and structural components in heavy machinery, compressors, pumps, agricultural equipment and lifting systems.

Hex head screws are widely used in energy equipment, metal processing, electrical installation, furniture manufacturing and other fields because of their strong, adaptable and easy installation. Hexagon head screws support the machinery and structure that maintain industrial operation from construction sites, offshore platforms to workshops, assembly lines and other environments.

Product Scope and Capability Summary

The following is a brief summary of the scope of primary products created by Ningbo Shengfa Hardware, providing a comprehensive scope picture for project planners, engineers, and procurement teams:
